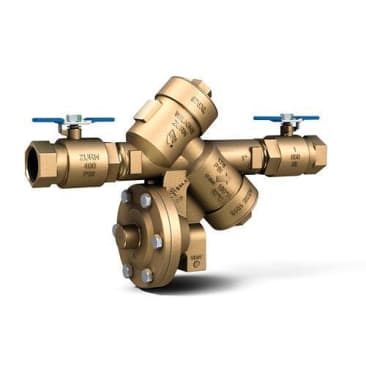

WILKINS 1-975XL Image 1

WILKINS 1-975XL RPPA SERIES 975 1IN 91000354

MFR Part #: 1-975XL
SKU #: 1113372
Brand: Zurn® | Wilkins
UPC: 10612052040254
Zurn® Wilkins 1-975XL 975XL Wye pattern Backflow Preventer, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Reduced Pressure, Import
Plumbing, Potable Water
ASSE and IAPMO listed | UL Classified | C-UL Classified | CSA certified | AWWA compliant | cUPC Listed | PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm

Zurn® Wilkins, 1-975XL, Backflow Preventer, Wye pattern, Series: 975XL, 1 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Media: Water, Cast Bronze, 8.5 in H x 5.125 in W x 13 in L Dimensions, Import

The 1 in 975XL Reduced Pressure Principle Backflow Preventer is used on non-potable water applications for high health hazard protection from both backsiphonage and backpressure of contaminated water into the potable water supply. The wye pattern design with short lay length eases installation in compact spaces, and the cast bronze body includes separate access to the relief valve and each check valve for reduced labor costs and repair time. The 975XL is favored by installers around the world, and is the simplest, best performing, and most reliable backflow preventer in the irrigation market today

Product Details

Zurn® Wilkins, 1-975XL, Backflow Preventer, Wye pattern, Series: 975XL, 1 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Media: Water, Cast Bronze, 8.5 in H x 5.125 in W x 13 in L Dimensions, Import

The 1 in 975XL Reduced Pressure Principle Backflow Preventer is used on non-potable water applications for high health hazard protection from both backsiphonage and backpressure of contaminated water into the potable water supply. The wye pattern design with short lay length eases installation in compact spaces, and the cast bronze body includes separate access to the relief valve and each check valve for reduced labor costs and repair time. The 975XL is favored by installers around the world, and is the simplest, best performing, and most reliable backflow preventer in the irrigation market today

Attributes

Backflow TypeReduced Pressure
Country Of OriginChina
Nominal Size1 in
TypeWye pattern
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve
Body MaterialBronze
ColorBronze
Dimensions8.5 in H x 5.125 in W x 13 in L
Domestic/ImportImport
End StyleFNPT
FinishCast Bronze
MediaWater
Pressure Rating175 psi
Series975XL
Temperature Rating33 to 140 deg F

Features

  • Wye pattern design reduces installation time and costs
  • Short lay length eases replacement labor costs
  • Easy access to the first check for debris removal reduces maintenance costs
  • Entire unit serviceable in line
  • A tried and true design favored by installers worldwide
