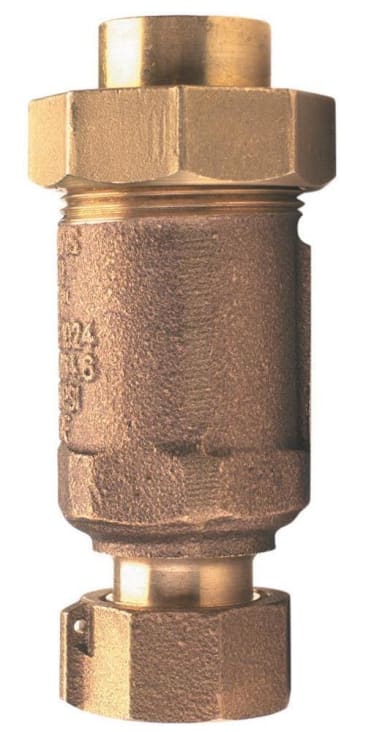

WILKINS 12UFX12F-700XL 1/2IN DUAL CHECK 34-700XL

MFR Part #: 12UFX12F-700XL
SKU #: 1171893
Brand: Zurn® | Wilkins
UPC: 10612052079704
Zurn® Wilkins 12UFX12F-700XL 700XL Valve, 1/2 in Nominal, FNPT End Style, Dual Check, Import
Plumbing, Potable Water
ASSE Listed 1024 | CSA Certified | Meets the requirements of NSF/ANSI 61 | Lead-Free Compliant | PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm

Zurn® Wilkins, 12UFX12F-700XL, Valve, Series: 700XL, 1/2 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 140 deg F, Dual Check Backflow, Media: Water, Cast Bronze, 2.1 in H x 2.3 in W x 4.1 in L Dimensions, Import

The 700XL Dual Check Valve with 1/2 in female union inlet x 1/2 in female outlet is used in low hazard applications on potable water lines to protect against both backsiphonage and backpressure of polluted water.A non-testable device, the 700XLcan be installed horizontally or vertically so long as no part of the unit is submerged and will provide protection where a potential health hazard does not exist.The quality stainless steel springs and bronze body resist against corrosion. The valve is Safe Drinking Water Act compliant, ASSE Listed and CSA Certified

Product Details

Zurn® Wilkins, 12UFX12F-700XL, Valve, Series: 700XL, 1/2 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 140 deg F, Dual Check Backflow, Media: Water, Cast Bronze, 2.1 in H x 2.3 in W x 4.1 in L Dimensions, Import

The 700XL Dual Check Valve with 1/2 in female union inlet x 1/2 in female outlet is used in low hazard applications on potable water lines to protect against both backsiphonage and backpressure of polluted water.A non-testable device, the 700XLcan be installed horizontally or vertically so long as no part of the unit is submerged and will provide protection where a potential health hazard does not exist.The quality stainless steel springs and bronze body resist against corrosion. The valve is Safe Drinking Water Act compliant, ASSE Listed and CSA Certified

Attributes

Backflow Type: Dual Check
Body Material: Bronze
Color: Bronze
Country Of Origin: Taiwan
Dimensions: 2.1 in H x 2.3 in W x 4.1 in L
Domestic/Import: Import
End Style: FNPT
Finish: Cast Bronze
Media: Water
Nominal Size: 1/2 in
Pressure Rating: 175 psi
Series: 700XL
Temperature Rating: 33 to 140 deg F

Features

  • Several configuration options ease installation and repairs
  • Horizontal or vertical installation reduces installation time and associated costs
  • Comes standard with a union inlet connection and integral body outlet connection
  • Quality stainless steel springs and low-lead bronze body resist corrosion
  • Lead free

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
