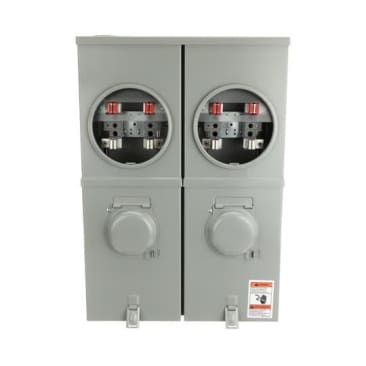

MICRO CO12-100HI 200A 120/240V 2 GANG OVERHEAD METER SOCKET
MFR Part #: CO12-100HI
SKU #: 1260920
Brand: ABB | Microlectric®
UPC: 624871005379
Microlectric® CO12-100HI 2-Gang 2-Position Weatherproof Meter Socket With Circuit Breaker, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Screw Type Ring
Overhead Service Applications
CSA 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, 2-Gang 2-Position Weatherproof, Series: CO1, 120/240 VAC, 200 A, 1, Overhead Feed, 4 Jaws, 6 AWG to 250 kcmil, 6 to 1/0 AWG Wire, Screw, Line/Load Lug Terminal, NEMA 3R, 23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Amperage Rating:
200 A
Country Of Origin:
Canada
Enclosure Type:
NEMA 3R
Dimensions:
23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Feed Type:
Overhead
Hub Type:
Screw
Number of Jaws:
4
Phase:
1
Series:
CO1
Terminal Type:
Line/Load Lug
Type:
2-Gang 2-Position Weatherproof
Voltage Rating:
120/240 VAC
Wire Size:
6 AWG to 250 kcmil, 6 to 1/0 AWG
- Complete with Siemens (2) Q2100H 100 A, 2-pole 10 kA rated circuit breakers
Product Details
Microlectric® Meter Socket, 2-Gang 2-Position Weatherproof, Series: CO1, 120/240 VAC, 200 A, 1, Overhead Feed, 4 Jaws, 6 AWG to 250 kcmil, 6 to 1/0 AWG Wire, Screw, Line/Load Lug Terminal, NEMA 3R, 23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Attributes
Amperage Rating: 200 A
Country Of Origin: Canada
Enclosure Type: NEMA 3R
Dimensions: 23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Feed Type: Overhead
Hub Type: Screw
Number of Jaws: 4
Phase: 1
Series: CO1
Terminal Type: Line/Load Lug
Type: 2-Gang 2-Position Weatherproof
Voltage Rating: 120/240 VAC
Wire Size: 6 AWG to 250 kcmil, 6 to 1/0 AWG
Features
- Complete with Siemens (2) Q2100H 100 A, 2-pole 10 kA rated circuit breakers
