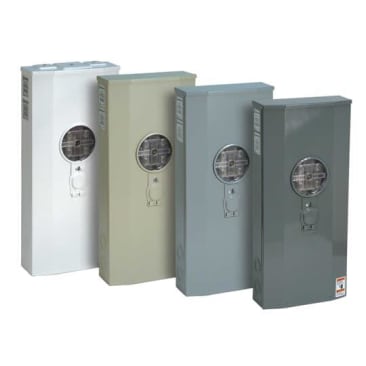

MICRO BP320-V OVERHEAD 320A 120/240 W/BYPASS MECHANISM
MFR Part #: BP320-V
SKU #: 1123200
Brand: ABB | Microlectric®
UPC: 624871010205
Microlectric® BP320-V Self Contained Weatherproof Meter Socket With Screw Type Sealing Ring, Bypass Mechanism, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
Overhead Service Applications
CSA File No. 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, Self Contained Weatherproof, Series: BP320, 600 VAC, 320 A, 1 ph, Overhead Feed, 250 to 500 kcmil Wire, Line/Load Terminal, NEMA 3R Enclosure, 34-1/16 in H x 5-15/16 in W x 15-9/16 in D Dimensions
Country Of Origin:
Canada
Amperage Rating:
320 A
Color:
Gray
Connection Type:
Tunnel
Dimensions:
34-1/16 in H x 5-15/16 in W x 15-9/16 in D
Enclosure Type:
NEMA 3R
Feed Type:
Overhead
Mounting Type:
Surface
NEMA Rating:
NEMA 3R
Phase:
1 ph, 1
Series:
BP320, BP320 Series
Terminal Type:
Line/Load, Line, Load
Type:
Self Contained Weatherproof
Voltage Rating:
600 VAC, 120/240 V
Wire Material:
Aluminum/Copper
Wire Size:
250 to 500 kcmil, 500 kcmil
- Line and load side termination, tunnel type connectors, dual rated for (1) 500 kcmil or (2) 250 kcmil
- Neutral termination, tunnel type connectors, dual rated (2) 250 kcmil
Product Details
Microlectric® Meter Socket, Self Contained Weatherproof, Series: BP320, 600 VAC, 320 A, 1 ph, Overhead Feed, 250 to 500 kcmil Wire, Line/Load Terminal, NEMA 3R Enclosure, 34-1/16 in H x 5-15/16 in W x 15-9/16 in D Dimensions
Attributes
Country Of Origin: Canada
Amperage Rating: 320 A
Color: Gray
Connection Type: Tunnel
Dimensions: 34-1/16 in H x 5-15/16 in W x 15-9/16 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead
Mounting Type: Surface
NEMA Rating: NEMA 3R
Phase: 1 ph, 1
Series: BP320, BP320 Series
Terminal Type: Line/Load, Line, Load
Type: Self Contained Weatherproof
Voltage Rating: 600 VAC, 120/240 V
Wire Material: Aluminum/Copper
Wire Size: 250 to 500 kcmil, 500 kcmil
Features
- Line and load side termination, tunnel type connectors, dual rated for (1) 500 kcmil or (2) 250 kcmil
- Neutral termination, tunnel type connectors, dual rated (2) 250 kcmil
