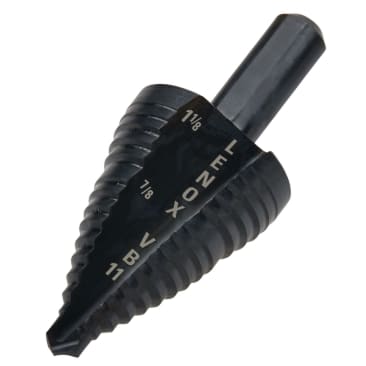

LENOX VB11 (30888) 7/8 - 1-1/8IN VARI-BIT
MFR Part #: 30888VB11
SKU #: 0616590
Brand: Lenox®
UPC: 082472308884
Lenox® Vari-Bit® 30888VB11 Step Drill Bit, 7/8 in Dia Min Hole, 1-1/8 in Dia Max Hole, 2 Steps, HSS, 2 Hole Sizes, 3/8 in Shank
ARRA Compliant|Buy American Act Compliant
Product Details
Attributes
Features
Resources
Lenox® Vari-Bit® Step Drill Bit, Imperial, 7/8 in Diameter Minimum Hole, 1-1/8 in Diameter Maximum Hole, 2-3/4 in Overall Length, 2 Steps, 1/8 in Step Depth, 2 Hole, 2 Flutes, 3/8 in Shank, 3-Flat Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Most Metals and Stainless Steel
Applicable Materials:
Most Metals and Stainless Steel
Country Of Origin:
US
Cutting Direction:
Right Hand
Cutting Edge Material:
HSS
Drill Diameter Measurement System:
Imperial
Finish:
Steam Oxide
Material:
HSS
Maximum Hole Diameter:
1-1/8 in
Minimum Hole Diameter:
7/8 in
Number of Flutes:
2
Number of Hole Sizes:
2
Number of Steps:
2
Overall Length:
2-3/4 in
Point Angle:
135 deg
Point Type:
Split
Shank Size:
3/8 in
Shank Type:
3-Flat
Step Depth:
1/8 in
- Patented Two Flute Design Cuts Fast, Clean, Round Holes
- Starts On Contact
- 6 Piece Vari-Bit Step Drill Bit Kit Vb1, Vb2, Vb6, Vb7, Vb8, Vb11
- Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
- Split point design for faster penetration and less walking
- Steam oxide coating adds durability
- Enhanced flute design removes chips rapidly
- Eliminates the problem of tip breakage on standard drill bit
Product Details
Lenox® Vari-Bit® Step Drill Bit, Imperial, 7/8 in Diameter Minimum Hole, 1-1/8 in Diameter Maximum Hole, 2-3/4 in Overall Length, 2 Steps, 1/8 in Step Depth, 2 Hole, 2 Flutes, 3/8 in Shank, 3-Flat Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Most Metals and Stainless Steel
Attributes
Applicable Materials: Most Metals and Stainless Steel
Country Of Origin: US
Cutting Direction: Right Hand
Cutting Edge Material: HSS
Drill Diameter Measurement System: Imperial
Finish: Steam Oxide
Material: HSS
Maximum Hole Diameter: 1-1/8 in
Minimum Hole Diameter: 7/8 in
Number of Flutes: 2
Number of Hole Sizes: 2
Number of Steps: 2
Overall Length: 2-3/4 in
Point Angle: 135 deg
Point Type: Split
Shank Size: 3/8 in
Shank Type: 3-Flat
Step Depth: 1/8 in
Features
- Patented Two Flute Design Cuts Fast, Clean, Round Holes
- Starts On Contact
- 6 Piece Vari-Bit Step Drill Bit Kit Vb1, Vb2, Vb6, Vb7, Vb8, Vb11
- Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
- Split point design for faster penetration and less walking
- Steam oxide coating adds durability
- Enhanced flute design removes chips rapidly
- Eliminates the problem of tip breakage on standard drill bit
