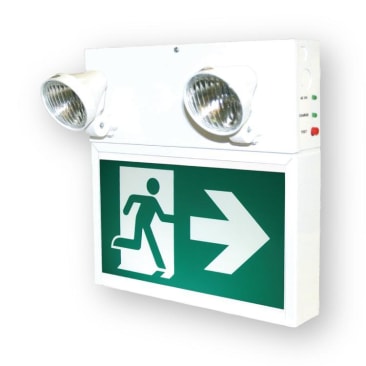

STANPRO PRMS60360-2N09T RM COMBO ST 6V36W UF 2N9T WHT
Product Details
Attributes
Features
Resources
Stanpro Combination Sign, Universal, Series: LT Series, 120/347 VAC, 6 VDC, 36 to 72 W Fixture, PAR18 LED Lamp, 3 to 5 W Lamp, 2 Lamps, 2 Heads, 50000 hr Average Life, Legend: Running Man, Red Legend, 6 in H Legend, Ceiling Mounting, Lead Acid Battery Power Source, Steel Housing Material, White Housing Finish, 12 in W Dimensions
The PRMS series of commercial combination steel signs and battery units features a slim profile that eliminates light leaks combined with a simple, easy to install design. Two PAR18 small style, front mounted heads are standard, PAR36 large style or MR16 type are optional.
- LED ultra bright light source
- 120/347 VAC input, field selectable
- 1.9 W power consumption for LED exit portion of combination sign
- LED emergency DC wattage of 6 VDC = 0.9 W/12 VDC = 0.9 W
- 6 VDC or 12 VDC emergency power output versions (as specified)
- 30 min emergency power duration standard
- Momentary push button test switch
- Pilot LED for AC on and charge
- Fully automatic, current limited charger
- Solid state design and construction
- Brownout and short-circuit protection, temperature compensated
- Maintenance free, sealed lead-acid battery
- 20 ga steel construction
- Slide out faceplates and backplates for rapid and simple installation
Product Details
Stanpro Combination Sign, Universal, Series: LT Series, 120/347 VAC, 6 VDC, 36 to 72 W Fixture, PAR18 LED Lamp, 3 to 5 W Lamp, 2 Lamps, 2 Heads, 50000 hr Average Life, Legend: Running Man, Red Legend, 6 in H Legend, Ceiling Mounting, Lead Acid Battery Power Source, Steel Housing Material, White Housing Finish, 12 in W Dimensions
The PRMS series of commercial combination steel signs and battery units features a slim profile that eliminates light leaks combined with a simple, easy to install design. Two PAR18 small style, front mounted heads are standard, PAR36 large style or MR16 type are optional.
Attributes
Features
- LED ultra bright light source
- 120/347 VAC input, field selectable
- 1.9 W power consumption for LED exit portion of combination sign
- LED emergency DC wattage of 6 VDC = 0.9 W/12 VDC = 0.9 W
- 6 VDC or 12 VDC emergency power output versions (as specified)
- 30 min emergency power duration standard
- Momentary push button test switch
- Pilot LED for AC on and charge
- Fully automatic, current limited charger
- Solid state design and construction
- Brownout and short-circuit protection, temperature compensated
- Maintenance free, sealed lead-acid battery
- 20 ga steel construction
- Slide out faceplates and backplates for rapid and simple installation
