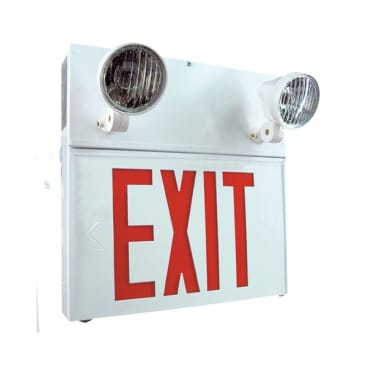

STANPRO SPEXS60360-2N09T 6V EXIT COMBO PACK W/2 9V HEADS
Product Details
Attributes
Features
Resources
Stanpro Combination Sign, Universal, Series: SPEXS, 120/347 VAC, 6/12 VDC, 36 to 72 W Fixture, PAR18 LED Lamp, 3 to 7 W Lamp, 2 Lamps, 2 Heads, Legend: EXIT, Ceiling Mounting, Lead Acid Battery Power Source, Steel Housing Material, White Housing Finish, 12 in W Dimensions
The SPEXS/SPSRS series of commercial combination steel signs and battery units features a slim profile that eliminates light leaks combined with a simple, easy to install design. Two PAR18 small style, front mounted heads are standard, PAR36 large style or MR16 type are optional.
- LED ultra bright light source
- 120/347 VAC input, field selectable
- 1.9 W power consumption for LED exit portion of combination sign
- LED emergency DC wattage of 6 VDC =1.3 W/12 VDC = 1.7 W
- 6 VDC or 12 VDC emergency power output versions (as specified)
- Wattage capacities from 36 to 72 W
- 30 min emergency power duration standard
- Momentary push button test switch
- Diagnostic/pilot LEDs for AC on and charge
- Fully automatic, current limited charger
- Solid state design and construction with brownout and short-circuit protection
- Temperature compensated
- Maintenance free, sealed lead-acid battery
- 20 ga steel construction
- Slide out faceplates and backplates for rapid and simple installation
- Snap out directional chevrons/arrows
- Universal spider knockout pattern stamped into backplate for junction box mounting
- Universal models include ceiling or end mount, field installable canopy kit comes with spider plate
- Multiple conduit entry knockouts
- Front head mounting is standard, exit side mount is optional
Product Details
Stanpro Combination Sign, Universal, Series: SPEXS, 120/347 VAC, 6/12 VDC, 36 to 72 W Fixture, PAR18 LED Lamp, 3 to 7 W Lamp, 2 Lamps, 2 Heads, Legend: EXIT, Ceiling Mounting, Lead Acid Battery Power Source, Steel Housing Material, White Housing Finish, 12 in W Dimensions
The SPEXS/SPSRS series of commercial combination steel signs and battery units features a slim profile that eliminates light leaks combined with a simple, easy to install design. Two PAR18 small style, front mounted heads are standard, PAR36 large style or MR16 type are optional.
Attributes
Features
- LED ultra bright light source
- 120/347 VAC input, field selectable
- 1.9 W power consumption for LED exit portion of combination sign
- LED emergency DC wattage of 6 VDC =1.3 W/12 VDC = 1.7 W
- 6 VDC or 12 VDC emergency power output versions (as specified)
- Wattage capacities from 36 to 72 W
- 30 min emergency power duration standard
- Momentary push button test switch
- Diagnostic/pilot LEDs for AC on and charge
- Fully automatic, current limited charger
- Solid state design and construction with brownout and short-circuit protection
- Temperature compensated
- Maintenance free, sealed lead-acid battery
- 20 ga steel construction
- Slide out faceplates and backplates for rapid and simple installation
- Snap out directional chevrons/arrows
- Universal spider knockout pattern stamped into backplate for junction box mounting
- Universal models include ceiling or end mount, field installable canopy kit comes with spider plate
- Multiple conduit entry knockouts
- Front head mounting is standard, exit side mount is optional
