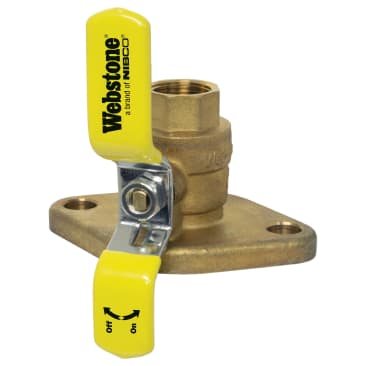

WEBSTONE H-40403 3/4 IPS X FLANGE FULL PORT BRASS BALL VALVE
Product Details
Attributes
Features
Resources
Webstone The Isolator®, 40403, Ball Valve, Standard Uni-Flange, Series: 4040, 3/4 in Nominal, FNPT x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Lever Handle Actuator, 2-3/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Threaded ends comply with ANSI B1.20.1.
- Heavy duty forged brass construction
- Ball valve with integral spring check saves labor, space, and leak paths
- Replace three component
- Unique uni-body design
- Replaces 3 components, eliminates 2 leak paths saves 18 min of labor
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Eliminate two leak path
- PTFE seat/stem seal
- This valve is actuated by a blowout proof stem
Product Details
Webstone The Isolator®, 40403, Ball Valve, Standard Uni-Flange, Series: 4040, 3/4 in Nominal, FNPT x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Lever Handle Actuator, 2-3/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Threaded ends comply with ANSI B1.20.1.
Attributes
Features
- Heavy duty forged brass construction
- Ball valve with integral spring check saves labor, space, and leak paths
- Replace three component
- Unique uni-body design
- Replaces 3 components, eliminates 2 leak paths saves 18 min of labor
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Eliminate two leak path
- PTFE seat/stem seal
- This valve is actuated by a blowout proof stem
