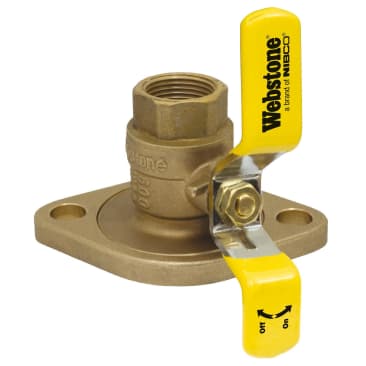

WEBSTONE 41404 Image 1

WEBSTONE H-41404 1IN IPS ISOLATOR VLV W/ROTATING FLG 600WOG

MFR Part #: 41404
SKU #: 1158550
Brand: NIBCO® | Webstone
UPC: 018394414044
Webstone The Isolator® 41404 4140 Standard Uni-Flange Ball Valve, 1 in Nominal, FNPT x Rotating Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Lifetime
Residential, Commercial and Industrial Applications
ANSI B1.20.1 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. | ANSI B1.20.1

Webstone The Isolator®, 41404, Ball Valve, Standard Uni-Flange, Series: 4140, 1 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1 in Orifice, Wing Style T-Handle Actuator, 3-1/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import

The Isolator® is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator® has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commercial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Product Details

Webstone The Isolator®, 41404, Ball Valve, Standard Uni-Flange, Series: 4140, 1 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1 in Orifice, Wing Style T-Handle Actuator, 3-1/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import

The Isolator® is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator® has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commercial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Attributes

Ball MaterialHCP Brass
Body MaterialForged Brass
Connection TypeFNPT x Rotating Flange
Country Of OriginChina
Domestic/ImportImport
Inlet to Outlet Length3-1/16 in
MediaGlycol Mixture/Oil/Water
Nominal Size1 in
Operator TypeWing Style T-Handle
Orifice Size1 in
Port TypeFull
Pressure Rating600 psi CWP
Series4140
Softgoods MaterialPTFE
Temperature Rating100 deg F
Top to Inlet Center2-5/8 in
Trim MaterialBrass/PTFE
TypeStandard Uni-Flange

Features

  • The features and benefits you trust in our original Isolator® line with two versatile enhancements
  • 3-way ball purges before or after the pump
  • Unique uni-body design is preserved
  • Compatible with popular press tools
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Guaranteed for life
  • Save 63 minute of labor
  • Replace three component
  • Saves 18 min
  • Fits virtually any standard circulator pump
  • Flange feature a conical inlet to minimize turbulence
  • Easily isolate the pump for replacement
  • Prevent electrolysis and eliminate galvanic corrosion
  • Eliminate two leak path
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Available in Lead-Free
  • Adjustable Packing Gland
  • This valve is actuated by a blowout proof stem
