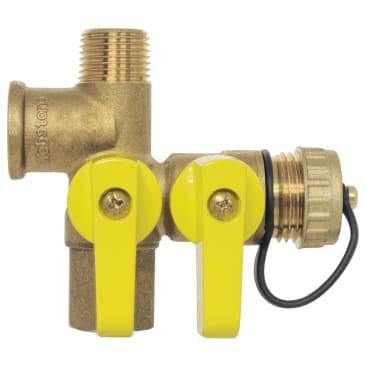

WEBSTONE H-41672 Image 1

WEBSTONE H-41672 1/2 FIPXMIPXFIP X HOSE EXPAN TANK SVC VALVE

MFR Part #: H-41672
SKU #: 1060909
Brand: NIBCO® | Webstone
UPC: 018394416727
Webstone H-41672 Pro-Pal® H-41672 Standard Ball Valve, 1/2 in Nominal, FNPT x MNPT x FNPT x Hose End Style, Full Port, Import
Lifetime
Residential and Commercial Applications
ANSI B1.20.1 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Webstone, H-41672, Ball Valve, Standard, Series: Pro-Pal® H-41672, 1/2 in Nominal, FNPT x MNPT x FNPT x Hose End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1/2 in Orifice, Lever Handle Actuator, 3-3/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import

Designed for residential, light commercial use with water or oil. This approved Webstone Valve allows for isolation and draining of an expansion tank in a closed loop hydronic heating system. It is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends company with ANSI B1.20.1.

Product Details

Webstone, H-41672, Ball Valve, Standard, Series: Pro-Pal® H-41672, 1/2 in Nominal, FNPT x MNPT x FNPT x Hose End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1/2 in Orifice, Lever Handle Actuator, 3-3/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import

Designed for residential, light commercial use with water or oil. This approved Webstone Valve allows for isolation and draining of an expansion tank in a closed loop hydronic heating system. It is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends company with ANSI B1.20.1.

Attributes

Actuator Type: Lever Handle
Ball Material: HCP Brass
Body Material: Forged Brass
Connection Type: FNPT x MNPT x FNPT x Hose
Country Of Origin: China
Domestic/Import: Import
Inlet to Outlet Length: 3-3/8 in
Media: Gas/Oil/Water
Nominal Size: 1/2 in
Orifice Size: 1/2 in
Port Type: Full
Pressure Rating: 600 psig WOG
Series: Pro-Pal® 41672
Softgoods Material: PTFE
Temperature Rating: 100 deg F
Top to Inlet Center: 1-9/16 in
Trim Material: Brass Stem and PTFE Seat
Type: Standard

Features

  • Allows for Isolation and Draining of an Expansion Tank in a Closed Loop Hydronic Heating System
  • 3-Way Ball Controls Flow Between the Expansion Tank and the System
  • Easily Install, Isolate, Drain and Replace Any Expansion Tank
  • Quickly Connect Entire System to the Cold Water Feed
  • MIP Model for Direct Connection to Air Separator or Tee
  • Saves 36 min
  • Replaces 5 Components
  • Eliminates 4 Leak Paths
  • Available in FIP x MIP x FIP x Hose, FIP x FIP x FIP x Hose
