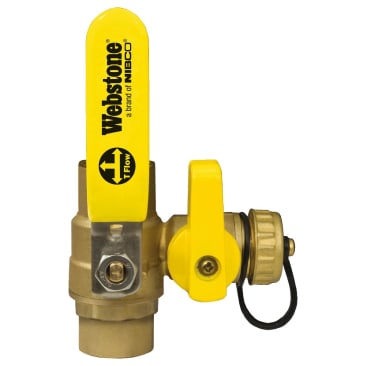

WEBSTONE H-50613 3/4 CXC SWEAT BALL DRAIN VALVE

MFR Part #: 50613
SKU #: 1060910
Brand: NIBCO® | Webstone
UPC: 018394506138
Webstone Ball Drain™ 50613 5061 Ball Valve, 3/4 in Nominal, C End Style, Forged Brass Body, Full Port, EPDM/PTFE Softgoods, Import
Lifetime
Residential, Commercial and Industrial Applications
ASME B16.18 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Webstone Ball Drain™, 50613, Ball Valve, Series: 5061, 3/4 in Nominal, C End Style, 600 psi CWP Pressure, 200 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 2.88 in Inlet to Outlet Length, 2.06 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, 8.9 in L x 4.7 in W x 5 in H Dimensions, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

Product Details

Webstone Ball Drain™, 50613, Ball Valve, Series: 5061, 3/4 in Nominal, C End Style, 600 psi CWP Pressure, 200 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 2.88 in Inlet to Outlet Length, 2.06 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, 8.9 in L x 4.7 in W x 5 in H Dimensions, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

Attributes

Ball Material: HCP Brass
Body Material: Forged Brass
Connection Type: C
Country Of Origin: China
Dimensions: 8.9 in L x 4.7 in W x 5 in H
Domestic/Import: Import
Inlet to Outlet Length: 2.88 in
Media: Glycol Mixture/Oil/Water
Nominal Size: 3/4 in
Operator Type: Reversible Handle
Port Type: Full
Pressure Rating: 600 psi CWP
Series: 5061
Softgoods Material: EPDM/PTFE
Temperature Rating: 200 deg F
Top to Inlet Center: 2.06 in
Trim Material: Brass/PTFE

Features

  • Saves 27 minutes of labor
  • Guaranteed for life
  • Replaces 4 components
  • Valves with the T-flow adjustable flow path may be quickly and easily reconfigured to drain from either side of the ball
  • Eliminate assemblies needed to isolate and drain any portion of a piped system
  • PTFE stem seal
  • Eliminates 3 Leak Paths
