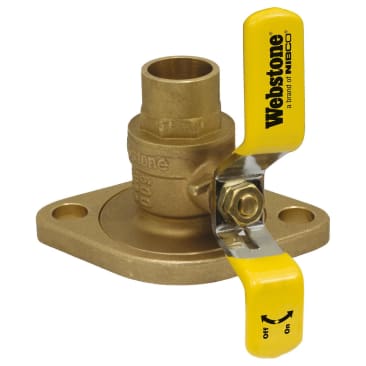

WEBSTONE 51403 Image 1

WEBSTONE H-51403 3/4IN SWEAT ISOLATOR VALVE

MFR Part #: 51403
SKU #: 1160836
Brand: NIBCO® | Webstone
UPC: 018394514034
Webstone The Isolator® 51403 5140 Standard Uni-Flange Ball Valve, 3/4 in Nominal, C x Rotating Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Lifetime
Residential, Commercial and Industrial Applications
ASME B16.18 | ASME B16.18 Annex A | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Webstone The Isolator®, 51403, Ball Valve, Standard Uni-Flange, Series: 5140, 3/4 in Nominal, C x Rotating Flanged End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Wing Style T-Handle Actuator, 2-9/16 in Inlet to Outlet Length, 2-3/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

Product Details

Webstone The Isolator®, 51403, Ball Valve, Standard Uni-Flange, Series: 5140, 3/4 in Nominal, C x Rotating Flanged End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Wing Style T-Handle Actuator, 2-9/16 in Inlet to Outlet Length, 2-3/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

Attributes

Ball MaterialHCP Brass
Body MaterialForged Brass
Connection TypeC x Rotating Flanged
Country Of OriginChina
Domestic/ImportImport
Inlet to Outlet Length2-9/16 in
MediaGlycol Mixture/Oil/Water
Nominal Size3/4 in
Operator TypeWing Style T-Handle
Orifice Size3/4 in
Port TypeFull
Pressure Rating600 psi CWP
Series5140
Softgoods MaterialPTFE
Temperature Rating100 deg F
Top to Inlet Center2-3/16 in
Trim MaterialBrass/PTFE
TypeStandard Uni-Flange

Features

  • The features and benefits you trust in our original Isolator® line with two versatile enhancements
  • 3-way ball purges before or after the pump
  • Unique uni-body design is preserved
  • Compatible with popular press tools
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Guaranteed for life
  • Save 63 minute of labor
  • Replace three component
  • Saves 18 min
  • Detachable rotating flange, adjustable packing gland, nuts and bolts, bonus wing style T-handle
  • Fits virtually any standard circulator pump
  • Flange feature a conical inlet to minimize turbulence
  • Easily isolate the pump for replacement
  • Prevent electrolysis and eliminate galvanic corrosion
  • Eliminate two leak path
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Available in Lead-Free
  • This valve is actuated by a blowout proof stem
