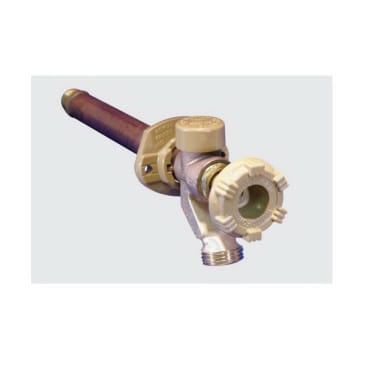

WOODFORD 17CP-4 Image 1
WOODFORD 17CP-4 Image 2
content loaded
WOODFORD 17CP-4 Image 1

WOODFORD 17CP-4-MH 4 MIP/COP NON-FRZ WALL FCT

MFR Part #: 17CP-4
SKU #: 1038373
Brand: Woodford®
UPC: 671090014033
Woodford® 17CP-4 Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 4 in THK Wall, 125 psi
Limited
For irrigation purposes
ASSE 1019 | CSA Certified | cUPC Listed | UPC Listed

Woodford® Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 4 in Wall Thickness, 125 psi, Wheel, 120 deg F, 15/16 in Dia Inlet

The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.

Product Details

Woodford® Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 4 in Wall Thickness, 125 psi, Wheel, 120 deg F, 15/16 in Dia Inlet

The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.

Attributes

Connection Type: MNPT x Female C
Dimensions: 15/16 in Dia Inlet
Domestic/Import: Domestic
Handle Type: Wheel
Length: 4 in
Nominal Size: 1/2 in
Pressure Rating: 125 psi
Temperature Rating: 120 deg F
Type: Anti-Siphon Freezeless
Wall Thickness: 4 in

Features

  • This unit offers anti-siphon protection
  • 3/4 in male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder joints
  • Standard o-size washer valve seat
  • Powder-coated die-cast aluminum handle
  • Adjustable polycarbonate wall flange
  • Warning: Faucet must be installed with downward pitch toward nozzle and hose must be removed in freezing weather or faucet may freeze and burst
  • Model 17

Resources

Specification Sheet
