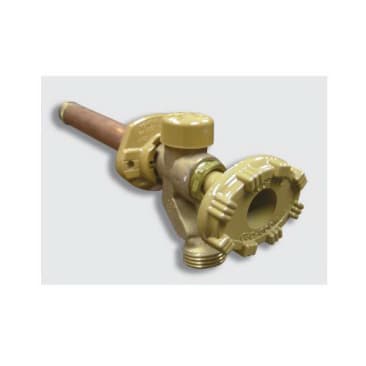

WOODFORD 19CP-4 Image 1
WOODFORD 19CP-4 Image 2
content loaded
WOODFORD 19CP-4 Image 1

WOODFORD 19CP-4 4 MIP/COP NON-FRZ WALL FCT

MFR Part #: 19CP-4
SKU #: 1056248
Brand: Woodford®
UPC: 671090010288
Woodford® 19CP-4 Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 4 in THK Wall, 125 psi, Domestic
5 Years
For irrigation purposes
ASSE 1019 | CSA Certified | cUPC Certified | UPC Certified

Woodford® Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 4 in Wall Thickness, 125 psi, Oval, 120 deg F, 15/16 in Dia Inlet, Domestic

The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

Product Details

Woodford® Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 4 in Wall Thickness, 125 psi, Oval, 120 deg F, 15/16 in Dia Inlet, Domestic

The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

Attributes

Connection Type: MNPT x Female C
Country Of Origin: US
Dimensions: 15/16 in Dia Inlet
Domestic/Import: Domestic
Handle Type: Oval
Length: 4 in
Nominal Size: 1/2 in
Pressure Rating: 125 psi
Temperature Rating: 120 deg F
Type: Anti-Siphon Freezeless
Wall Thickness: 4 in

Features

  • This unit offers anti-siphon and non-rupture protection
  • Not intended for continuous use
  • Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
  • 3/4 in male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder joints
  • Standard o-size washer valve seat
  • Oval, powder-coated, die-cast aluminum handle
  • Adjustable polycarbonate wall flange
  • Model 19

Resources

Specification Sheet
