WOODFORD V22CP-6-MH 6 MIP/COP HOT/COLT NON-FRZ VERT WALL FCT
Product Details
Attributes
Features

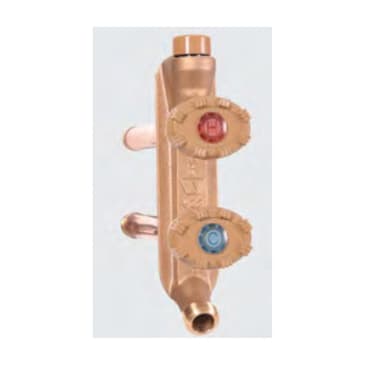

Woodford® Hot and Cold Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 6 in Wall Thickness, 125 psi, Oval, 120 deg F, Rough Brass, 15/16 in Dia Inlet
The freezeless Model 22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The Model 22 contains an integral backflow protection device and does not require and add-on vacuum breaker.
- This unit offers anti-siphon protection and pressure relief valves
- Not intended for continuous use
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- Built-in vent float style vacuum breaker
- Faucet drains automatically when hose is removed
- EPDM packing to prevent leaking
- Oval, powder-coated, die-cast aluminum handle
- Stainless steel seat - eliminates wire draw
- Standard o-size washer valve seat
- No lead solder joints
- 3/4 in male hose thread
- Vertical mount
- Model V22
Product Details
Woodford® Hot and Cold Wall Faucet, Anti-Siphon Freezeless, 1/2 in Nominal, MNPT x Female C, 6 in Wall Thickness, 125 psi, Oval, 120 deg F, Rough Brass, 15/16 in Dia Inlet
The freezeless Model 22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The Model 22 contains an integral backflow protection device and does not require and add-on vacuum breaker.
Attributes
Features
- This unit offers anti-siphon protection and pressure relief valves
- Not intended for continuous use
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- Built-in vent float style vacuum breaker
- Faucet drains automatically when hose is removed
- EPDM packing to prevent leaking
- Oval, powder-coated, die-cast aluminum handle
- Stainless steel seat - eliminates wire draw
- Standard o-size washer valve seat
- No lead solder joints
- 3/4 in male hose thread
- Vertical mount
- Model V22
