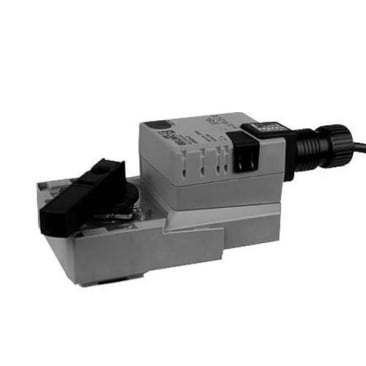

BELIMO ARB24-3 24VAC ON/OFF FLOATING POINT ACTUATOR
MFR Part #: ARB24-3
SKU #: 1160852
Brand: BELIMO®
UPC: 400006776143
BELIMO® ARB24-3 Damper Actuator, 24 VAC/VDC, 2.5 W Operation, 0.2 W Rest Position, 90 sec Timing
cUL/US according to UL 60730-1A/-2-14, CAN/CSA E60730-1:02, CE according to 2004/108/EC and 2006/95/EC for line voltage and/or -S versions, ISO 9001
Product Details
Attributes
Features
Resources
BELIMO® Damper Actuator, 24 VAC/VDC, 50/60 Hz, 2.5 W Operation, 0.2 W Rest Position, 5.5 V-A VA, 3 ft, 18 ga Plenum Rated Cable with 1/2 in Conduit Connector Electrical Connection, 90 sec Timing, 600 ohm Input, Less Than 45 dBA, -22 to 122 deg F Ambient, -40 to 176 deg F Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.46 in L x 3.3 in W
Dimensions:
3.46 in L x 3.3 in W
Electrical Connection:
3 ft, 18 ga Plenum Rated Cable with 1/2 in Conduit Connector
Enclosure Type:
NEMA 2, IP54
Frequency Rating:
50/60 Hz
Humidity Rating:
5 to 95% RH Non-Condensing
Input Impedance:
600 ohm
Noise Level:
<45 dBA
Power Rating:
2.5 W Operation, 0.2 W Rest Position
Temperature Rating:
-22 to 122 deg F Ambient, -40 to 176 deg F Storage
Timing Range:
90 s
VA Rating:
5.5 VA
Voltage Rating:
24 VAC/VDC
- On/off, floating point control
- Reversible with protected switch direction of rotation
- Handle position indication
- External push button manual override
- UL94-5VA housing material
Product Details
BELIMO® Damper Actuator, 24 VAC/VDC, 50/60 Hz, 2.5 W Operation, 0.2 W Rest Position, 5.5 V-A VA, 3 ft, 18 ga Plenum Rated Cable with 1/2 in Conduit Connector Electrical Connection, 90 sec Timing, 600 ohm Input, Less Than 45 dBA, -22 to 122 deg F Ambient, -40 to 176 deg F Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.46 in L x 3.3 in W
Attributes
Dimensions: 3.46 in L x 3.3 in W
Electrical Connection: 3 ft, 18 ga Plenum Rated Cable with 1/2 in Conduit Connector
Enclosure Type: NEMA 2, IP54
Frequency Rating: 50/60 Hz
Humidity Rating: 5 to 95% RH Non-Condensing
Input Impedance: 600 ohm
Noise Level: <45 dBA
Power Rating: 2.5 W Operation, 0.2 W Rest Position
Temperature Rating: -22 to 122 deg F Ambient, -40 to 176 deg F Storage
Timing Range: 90 s
VA Rating: 5.5 VA
Voltage Rating: 24 VAC/VDC
Features
- On/off, floating point control
- Reversible with protected switch direction of rotation
- Handle position indication
- External push button manual override
- UL94-5VA housing material
