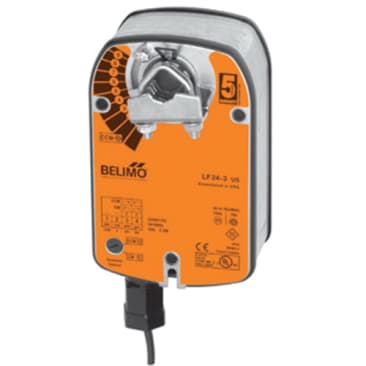

BELIMO LF24-3 US ON/OFF SPRING RETURN
Product Details
Attributes
Features
Resources
BELIMO® Damper Actuator, 24 VAC/VDC, 50/60 Hz, 2.5 W Running, 1 W Holding, 5 V-A VA, 3 ft 18 AWG Plenum Rated Cable with 1/2 in Conduit Electrical Connection, Less Than 15 sec Motor Running, Less Than 25 sec Fail-Safe Timing, Zinc-Coated Steel, 4 N-m Torque, 1000 ohm Input, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 3.86 in W x 7.66 in H, On-Off, Floating Control Signal, Direct Coupled Mounting
- Electronic throughout 0 - 95 deg rotation overload protection
- Reversible with built-in switch motor direction, reversible with clockwise/counter clockwise-mounting fail-safe direction
- Visual indicator, 0 - 95 deg (0 deg is full spring return position)
- True mechanical spring return - the most reliable fail-safe
- Easy to adjust mechanical stop to limit damper rotation
- Check damper position easily with clear position indicator
- Built-in auxiliary switch is easy-to-use, offers feedback or signal for additional device
Product Details
BELIMO® Damper Actuator, 24 VAC/VDC, 50/60 Hz, 2.5 W Running, 1 W Holding, 5 V-A VA, 3 ft 18 AWG Plenum Rated Cable with 1/2 in Conduit Electrical Connection, Less Than 15 sec Motor Running, Less Than 25 sec Fail-Safe Timing, Zinc-Coated Steel, 4 N-m Torque, 1000 ohm Input, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 3.86 in W x 7.66 in H, On-Off, Floating Control Signal, Direct Coupled Mounting
Attributes
Features
- Electronic throughout 0 - 95 deg rotation overload protection
- Reversible with built-in switch motor direction, reversible with clockwise/counter clockwise-mounting fail-safe direction
- Visual indicator, 0 - 95 deg (0 deg is full spring return position)
- True mechanical spring return - the most reliable fail-safe
- Easy to adjust mechanical stop to limit damper rotation
- Check damper position easily with clear position indicator
- Built-in auxiliary switch is easy-to-use, offers feedback or signal for additional device
