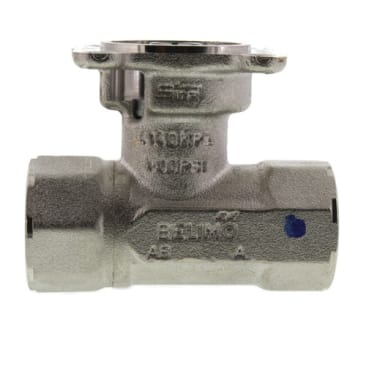

BELIMO B211 1/2 2WAY CCV VALVE 1.9CV
MFR Part #: B211
SKU #: 1085912
Brand: BELIMO®
UPC: 400005940224
BELIMO® B211 Characterized Control Valve, 1/2 in Nominal, FNPT, 2-Way-Port/Way, Forged Brass Body, Nickel-Plated
5 Year
For air handling units on heating or cooling coils, and fan coil unit heating or cooling coils
Product Details
Attributes
Features
Resources
BELIMO® Characterized Control Valve, 1/2 in Nominal, FNPT Connection, 600 lb/sq-in Working, 200 lb/sq-in Close-Off, Number of Ports/Ways: 2-Way, Forged Brass Body, PTFE Seat, Stainless Steel Stem, TEFZEL Disc, Stainless Steel Ball Trim, EPDM Packing, Finish: Nickel-Plated, 0 to 250 deg F, 2.41 in L
Dimensions:
2.41 in L
Finish:
Nickel-Plated
Body Material:
Forged Brass
Connection Type:
FNPT
Disc Material:
Tefzel
Nominal Size:
1/2 in
Number of Ports/Ways:
2-Way
Packing Material:
EPDM
Pressure Rating:
600 lb/sq-in Working, 200 lb/sq-in Close-Off
Seat Material:
PTFE
Stem Material:
Stainless steel
Temperature Rating:
0 to 250 deg F
Trim Material:
Stainless Steel Ball
- A-port equal percentage flow characteristics
- 75 deg controllable flow range
- Tefzel characterizing disc
- 50 lb/sq-in maximum differential pressure for typical applications
- 0% for A to AB leakage
- No motorized actuator
- Chilled or hot water, 60% glycol service
- (2) EPDM O-ring, lubricated
Product Details
BELIMO® Characterized Control Valve, 1/2 in Nominal, FNPT Connection, 600 lb/sq-in Working, 200 lb/sq-in Close-Off, Number of Ports/Ways: 2-Way, Forged Brass Body, PTFE Seat, Stainless Steel Stem, TEFZEL Disc, Stainless Steel Ball Trim, EPDM Packing, Finish: Nickel-Plated, 0 to 250 deg F, 2.41 in L
Attributes
Dimensions: 2.41 in L
Finish: Nickel-Plated
Body Material: Forged Brass
Connection Type: FNPT
Disc Material: Tefzel
Nominal Size: 1/2 in
Number of Ports/Ways: 2-Way
Packing Material: EPDM
Pressure Rating: 600 lb/sq-in Working, 200 lb/sq-in Close-Off
Seat Material: PTFE
Stem Material: Stainless steel
Temperature Rating: 0 to 250 deg F
Trim Material: Stainless Steel Ball
Features
- A-port equal percentage flow characteristics
- 75 deg controllable flow range
- Tefzel characterizing disc
- 50 lb/sq-in maximum differential pressure for typical applications
- 0% for A to AB leakage
- No motorized actuator
- Chilled or hot water, 60% glycol service
- (2) EPDM O-ring, lubricated
