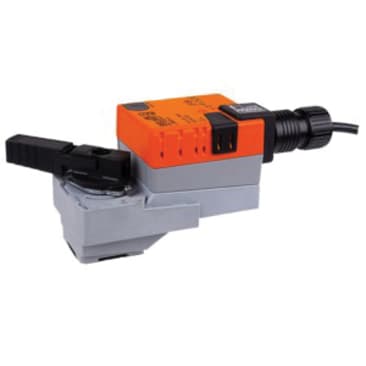

BELIMO ARX24-MFT Image 1

BELIMO ARX24-MFT 24 VAC MULTI FUNC TECH ACTUATOR

MFR Part #: ARX24-MFT
SKU #: 1237364
Brand: BELIMO®
UPC: 400050072284
BELIMO® ARX24-MFT Valve Actuator, Plastic/Steel
cULus According to UL 60730-1A/-2-14 | cCSA E60730-1:02 | CE According to 2004/108/EC and 2006/95/EC

BELIMO® Valve Actuator, 0.5 mA, 24 VAC/VDC, 50/60 Hz, VA Rating: 6 VA, 18 ga Plenum-Rated Cable with 1/2 in Conduit Connector Electrical Connection, 1.3 W Holding, 3.5 W Running Power Consumption, 150 s Timing, 180 in-lb Torque, 100 kOhm Input, 45 dBA Noise Level, NEMA 2, IP42 Enclosure, 90 deg Rotation Angle, MFT, Programmable Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F

Product Details

BELIMO® Valve Actuator, 0.5 mA, 24 VAC/VDC, 50/60 Hz, VA Rating: 6 VA, 18 ga Plenum-Rated Cable with 1/2 in Conduit Connector Electrical Connection, 1.3 W Holding, 3.5 W Running Power Consumption, 150 s Timing, 180 in-lb Torque, 100 kOhm Input, 45 dBA Noise Level, NEMA 2, IP42 Enclosure, 90 deg Rotation Angle, MFT, Programmable Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F

Attributes

Amperage Rating: .5 mA
Body Material: Plastic/Steel
Electrical Connection: 18 ga Plenum-Rated Cable with 1/2 in Conduit Connector
Enclosure Type: NEMA 2, IP42
Finish: Galvanized
Frequency Rating: 50/60 Hz
Input Impedance: 100 kOhm
Noise Level: 45 dBA
Power Consumption: 1.3 W Holding, 3.5 W Running
Rotation Angle: 90 deg
Service Type: Maintenance-Free
Signal Type: MFT, Programmable
Temperature Rating: -40 to 176 deg F
Timing Range: 150 s
Torque Rating: 180 in-lb
VA Rating: 6 VA
Voltage Rating: 24 VAC/VDC

Features

  • Non fail safe actuator
  • Multi-function technology
  • Reversible with built-in switch motor direction of rotation
  • Integrated into handle position indication
  • External push button manual override

Resources

Specification Sheet
