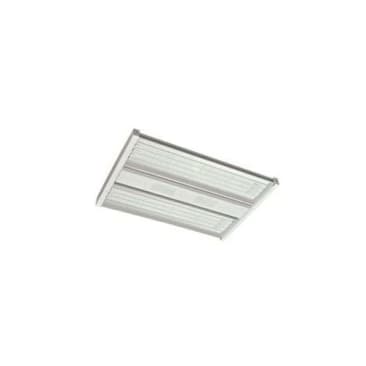

RAB 081102 Image 1
RAB 081102 Image 2
content loaded
RAB 081102 Image 1

RAB 081102 HIGH BAY 160W 120/277V 4000K 27120L

MFR Part #: 081102
SKU #: 1135813
Brand: RAB® Design Lighting
UPC: 61184811028
RAB® 081102 HB-LED150 Linear Standard Indoor High Bay Fixture, LED Lamp, 120 to 277 V, White Housing
5 years
This product may be subject to ecological fees.
6 ft Chain
For manufacturing, warehouses and other large indoor spaces with mounting heights from 10 to 40 ft
cULus Listed | DLC Listed

RAB® Indoor High Bay Fixture, Linear Standard, Series: HB-LED150, 120 to 277 V, LED Lamp, 150 W Lamp, 169 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, 27120 Lumens, Suspension Chain Mounting, Aluminum Housing Material, White Housing Finish, 24.21 in L x 17.7 in W x 1.97 in H Dimensions

The HB-LED series provides well-distributed uniform lighting and is ideal for large indoor spaces such as warehousing and manufacturing applications. HB-LED is an ideal one-for-one replacement for conventional lighting systems such as HID and fluorescent.

Product Details

RAB® Indoor High Bay Fixture, Linear Standard, Series: HB-LED150, 120 to 277 V, LED Lamp, 150 W Lamp, 169 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, 27120 Lumens, Suspension Chain Mounting, Aluminum Housing Material, White Housing Finish, 24.21 in L x 17.7 in W x 1.97 in H Dimensions

The HB-LED series provides well-distributed uniform lighting and is ideal for large indoor spaces such as warehousing and manufacturing applications. HB-LED is an ideal one-for-one replacement for conventional lighting systems such as HID and fluorescent.

Attributes

Color Temperature: 4000 K
Fixture Wattage: 160 W
Lumens: 27120 Lumens
Mounting Type: Suspension Chain
Average Life: 100000 hr
Ballast Type: 0 to 10 VDC Dimming
Color Rendering Index (CRI): 80
Dimensions: 24.21 in L x 17.7 in W x 1.97 in H
Housing Finish: White
Housing Material: Aluminum
Lamp Type: LED
Lamp Wattage: 150 W
Light Output: 169 Lumens/W
Series: HB-LED150
Type: Linear Standard
Voltage Rating: 120 to 277 V

Features

  • Aluminum heat sink for efficient heat management
  • Simple disconnect for easy installation
  • Without lens

Resources

Specification Sheet
