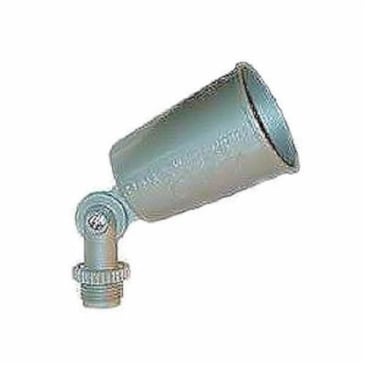

DESIGN ELECTRIC R100L Image 1

DESIGN ELECTRIC 008380 R100L LAMP HOLDER ZINC FINISH

MFR Part #: R100L
SKU #: 0684652
Brand: RAB® Design Lighting
UPC: 61184083807
RAB® R100L MS2HR 1-Head Floodlight Fixture With Motion Sensor, (1) Incandescent Lamp, 150 W Fixture, 120 VAC, Powder Coated Housing
This product may be subject to ecological fees.
Use on sides of buildings to provide perimeter lighting

RAB® Floodlight Fixture, 1-Head, Series: MS2HR, 120 VAC, 150 W Fixture, Incandescent Lamp, 150 W Lamp, 1 Lamp, 50000 hr Average Life, 5000 K Color Temperature, Glass Lens, 2000 Lumens, IP55 Enclosure, Threaded Mounting, Aluminum Housing Material, Powder Coated Housing Finish, 2 in Dia x 3-1/2 in L Dimensions

The R100 is a rugged PAR38 incandescent flood holder, rated upto 150 watts. The R100 is made from die-cast aluminum. Ideal for use on sides of buildings to provide perimeter lighting. Can also be used with RAB Design outdoor Sensors.

Product Details

RAB® Floodlight Fixture, 1-Head, Series: MS2HR, 120 VAC, 150 W Fixture, Incandescent Lamp, 150 W Lamp, 1 Lamp, 50000 hr Average Life, 5000 K Color Temperature, Glass Lens, 2000 Lumens, IP55 Enclosure, Threaded Mounting, Aluminum Housing Material, Powder Coated Housing Finish, 2 in Dia x 3-1/2 in L Dimensions

The R100 is a rugged PAR38 incandescent flood holder, rated upto 150 watts. The R100 is made from die-cast aluminum. Ideal for use on sides of buildings to provide perimeter lighting. Can also be used with RAB Design outdoor Sensors.

Attributes

Average Life50000 hr
Color Temperature5000 K
Country Of OriginUS
Dimensions2 in Dia x 3-1/2 in L
Enclosure TypeIP55
Fixture Wattage150 W
Housing FinishPowder Coated
Housing MaterialAluminum
Lamp TypeIncandescent
Lamp Wattage150 W
Lens TypeGlass
Lumens2000 Lumens
Mounting TypeThreaded
Number of Lamps1
SeriesMS2HR
Type1-Head
Voltage Rating120 VAC

Features

  • Fully adjustable with serrated teeth for locking in place, 1/2 in NPS threaded arm with locking nut, mounts to standard covers
  • Mounts to standard covers
  • Medium base porcelain socket. 150W Max Par38 lamp
  • Die cast aluminum with a powder coat paint finish housing
  • Silicone gasket
  • 1/2 in NPS Threaded Arm With Locking Nut mounting
  • Powder Coated, Natural housing finish
  • Die Cast Aluminum housing
