HUBBELL LNC5LU5KPC WALLPACK 13W 967LM 5000K BRZ 120-277V
MFR Part #: LNC-5LU-5K-PC
SKU #: 1159835
Brand: Hubbell® Outdoor Lighting
UPC: 785988020652

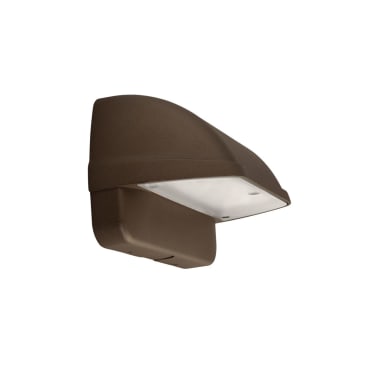

EXO Crosstour™ MAXX LNC-5LU-5K-PC Compact Wallpack With Button Photocontrol, (5) LED Lamp, 120/277 VAC, Dark Bronze Housing
5 years Limited
This product may be subject to ecological fees.
Entry/Perimeter Illumination, Safety, Security, Identity and Outdoor Applications
cCSAus Certified | DLC Listed | UL 1598 for Wet Location | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Details
Attributes
Features
Resources
EXO Crosstour™ MAXX Wallpack, Compact, Series: LNC, 120/277 VAC, 700 mA, LED Lamp, 13 W Lamp, 5 Lamps, 60000 hr Average Life, 5000 K Color Temperature, 70 CRI, 0 to 10 VAC Dimmable Ballast, Acrylic Diffuser Lens, 967 Lumens, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 5.25 in H x 8.22 in W x 4.81 in D Dimensions
Amperage Rating:
700 mA
Average Life:
60000 hr
Ballast Type:
0 to 10 VAC Dimmable
Color Rendering Index (CRI):
70
Color Temperature:
5000 K
Country Of Origin:
Mexico
Dimensions:
5.25 in H x 8.22 in W x 4.81 in D
Housing Finish:
Dark Bronze
Housing Material:
Die Cast Aluminum
Lamp Type:
LED
Lamp Wattage:
13 W
Lens Type:
Acrylic Diffuser
Lumens:
967 Lumens
Mounting Type:
Surface
Number of Lamps:
5
Series:
LNC
Type:
Compact
Voltage Rating:
120/277 VAC
- Typical mounting height is up to 12 ft with 40 ft fixture spacing (without acrylic diffuser) and 30 ft spacing with acrylic diffuser installed
- Full cut off distribution
- Quick mount adapter provides easy installation
- Up to 4:1 spacing to mounting height ratio means fewer fixtures to install
- Photo control option offered for dusk-to-dawn control
- Acrylic diffuser included, use for applications near entrances or locations where reduced brightness is desired
- Dark bronze architectural finish for lasting appearance
- -40 deg F minimum operating temperature
Product Details
EXO Crosstour™ MAXX Wallpack, Compact, Series: LNC, 120/277 VAC, 700 mA, LED Lamp, 13 W Lamp, 5 Lamps, 60000 hr Average Life, 5000 K Color Temperature, 70 CRI, 0 to 10 VAC Dimmable Ballast, Acrylic Diffuser Lens, 967 Lumens, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 5.25 in H x 8.22 in W x 4.81 in D Dimensions
Attributes
Amperage Rating: 700 mA
Average Life: 60000 hr
Ballast Type: 0 to 10 VAC Dimmable
Color Rendering Index (CRI): 70
Color Temperature: 5000 K
Country Of Origin: Mexico
Dimensions: 5.25 in H x 8.22 in W x 4.81 in D
Housing Finish: Dark Bronze
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 13 W
Lens Type: Acrylic Diffuser
Lumens: 967 Lumens
Mounting Type: Surface
Number of Lamps: 5
Series: LNC
Type: Compact
Voltage Rating: 120/277 VAC
Features
- Typical mounting height is up to 12 ft with 40 ft fixture spacing (without acrylic diffuser) and 30 ft spacing with acrylic diffuser installed
- Full cut off distribution
- Quick mount adapter provides easy installation
- Up to 4:1 spacing to mounting height ratio means fewer fixtures to install
- Photo control option offered for dusk-to-dawn control
- Acrylic diffuser included, use for applications near entrances or locations where reduced brightness is desired
- Dark bronze architectural finish for lasting appearance
- -40 deg F minimum operating temperature
