RECTORSEAL 96424 RSH-50 VRMDC KIT WITH SURGE+VRM+60A BREAKER+BOX
Product Details
Attributes
Features
Resources
RSH™ Series, 96424, Surge Protector and Voltage Range Monitor, 60 A 120 to 240 VAC Electrical Rating, 2 Pole, 1 ph, For Use With: All Single Phase 120/240V HVACR Equipment, Import

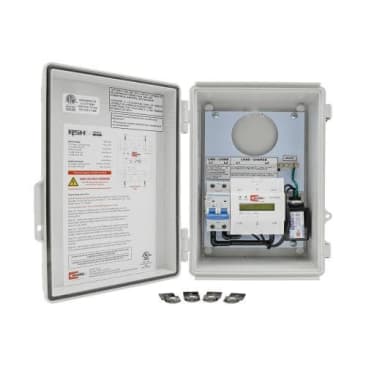

The RSH-50 VRMDC KIT combines the VRM60A, RSH-50, & 60A disconnect breaker in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses Gas Discharge Tube (GDT) Technology along with Thermally Fused Metal Oxide Varistors (TMOV) for ultimate protection.
- RSH-50 Surge Protector, Voltage Range Monitor, and 60A Disconnect Breaker inside a NEMA 3R/IP66 enclosure
- Over to Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay can be adjusted from 0.5 to 60 Seconds; Load Restore Delay adjustable from 1 to 600 Seconds 120/240 Single Phase
- Magnetic Latching Relays for Maximum Reliability
- Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators
- Easy Set Up, Field Programmable, No Laptop or Programming Tool Required
- Stores up to 300 over/under voltage and power-loss events in resettable internal memory
- Non-volatile memory retains all settings and event log when power is lost
- Universal 35mm snap-on din-rail receiver
- Snap-on finger guard screw terminal covers
- Entire kit is NEMA 3R enclosure, with the VRM60A having din-rail housing
Product Details
RSH™ Series, 96424, Surge Protector and Voltage Range Monitor, 60 A 120 to 240 VAC Electrical Rating, 2 Pole, 1 ph, For Use With: All Single Phase 120/240V HVACR Equipment, Import
The RSH-50 VRMDC KIT combines the VRM60A, RSH-50, & 60A disconnect breaker in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses Gas Discharge Tube (GDT) Technology along with Thermally Fused Metal Oxide Varistors (TMOV) for ultimate protection.
Attributes
Features
- RSH-50 Surge Protector, Voltage Range Monitor, and 60A Disconnect Breaker inside a NEMA 3R/IP66 enclosure
- Over to Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay can be adjusted from 0.5 to 60 Seconds; Load Restore Delay adjustable from 1 to 600 Seconds 120/240 Single Phase
- Magnetic Latching Relays for Maximum Reliability
- Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators
- Easy Set Up, Field Programmable, No Laptop or Programming Tool Required
- Stores up to 300 over/under voltage and power-loss events in resettable internal memory
- Non-volatile memory retains all settings and event log when power is lost
- Universal 35mm snap-on din-rail receiver
- Snap-on finger guard screw terminal covers
- Entire kit is NEMA 3R enclosure, with the VRM60A having din-rail housing
