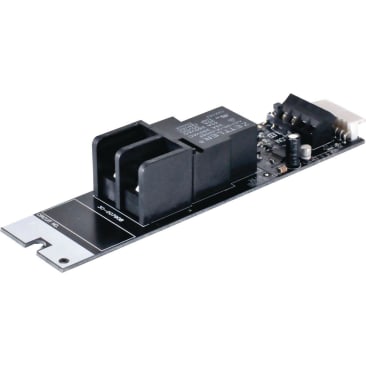

HUBBELL CXR3L RELAY 30A/1P LATCHING FOR USE W/CX PANELS
Product Details
Attributes
Features
Resources
NX Lighting Controls Lighting Control Relay, Latching Electrically Held Normally Closed Normally Open, Series: CXR, 120/277/347 VAC, 30 A, 1 Pole, 16/20/30 A, Panel Mounting, 32 to 112 deg F, 10 to 90% Non-Condensing Humidity, Black, 5-1/2 in L x 1-5/8 in W Dimensions
The CX panels four types of available CXR relays. Each relay is individually board-mounted and can be installed in any combination in the panel. Relays are offered in a variety of types and ratings to meet any project requirements. Types include electrically-held normally open (N/O), electrically-held normally closed (N/C) and latching.
- Compatible with all model CX panels
- Smart relay card self-identifies type automatically to panel
- Plug-in connector to panel motherboard and a single screw to secure it to the panel enclosure
- Manual override control button and LED status indication
- 20 A at 120 VAC tungsten, 16 A at 120 VAC electronic ballast, 30 A at 120 VAC magnetic ballast, 16 A at 277 VAC electronic ballast, 30 A at 277 VAC magnetic ballast, 20 A at 347 VAC electronic ballast
- Relays are mounted to individual relay cards
- Five types of relays - 20A/1P and 20A/2P, NO (14K SCCR), 30A/P latching (18K SCCR) and 30A/IP latching (5K SCCR)
- Panels are ordered fully populated with the same relay type or with space only for field installation of relay combinations
