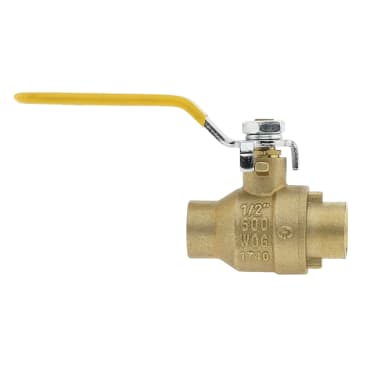

BOSHART 0827C-05 Image 1

BOSHART 0827C-05 1/2IN CC BALL VALVE

MFR Part #: 0827C-05
SKU #: 1115216
Brand: Boshart Industries
UPC: 777808265589
Boshart Industries 0827C-05 Ball Valve, 1/2 in Nominal, C End Style, Forged Brass Body, Full Port, PTFE/NBR Rubber/FKM Rubber Softgoods, Import
Industrial, Irrigation, Plumbing, Pool and Spa Applications
ANSI B16.18|CRN Listed|cUPC IGC 157|FM 1140|UL 125 (YSDT)|UL 1477 (YQNZ)|UL 842 (MHKZ)/(YRBX)/(YRPV)|CSA Approved

Boshart Industries Ball Valve, Series: 0827C Series, 1/2 in Nominal, C End Style, 600 psi CWP Pressure, Up to 300 deg F, Full Port, 0.59 in Orifice, Rubber Grip Handle Actuator, Stainless Steel Ball, 2.17 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/NBR Rubber/FKM Rubber Softgoods, Import

Boshart Industries Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

Product Details

Boshart Industries Ball Valve, Series: 0827C Series, 1/2 in Nominal, C End Style, 600 psi CWP Pressure, Up to 300 deg F, Full Port, 0.59 in Orifice, Rubber Grip Handle Actuator, Stainless Steel Ball, 2.17 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/NBR Rubber/FKM Rubber Softgoods, Import

Boshart Industries Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

Attributes

Ball Material: Stainless Steel
Body Material: Forged Brass
Connection Type: C
Country Of Origin: CHINA
Domestic/Import: Import
Inlet to Outlet Length: 2.17 in
Nominal Size: 1/2 in
Operator Type: Rubber Grip Handle
Orifice Size: .59 in
Port Type: Full
Pressure Rating: 600 psi CWP
Series: 0827C Series
Softgoods Material: PTFE/NBR Rubber/FKM Rubber
Temperature Rating: Up to 300 deg F
Top to Inlet Center: 1.81 in
Trim Material: Brass/PTFE

Features

  • CWP - cold working pressure, is an indication of the pressure rating for valves at a temperature range of up to +100 deg F (37 deg C)
  • Blow-out proof stem
  • Zinc plated steel handle with yellow plastic sleeve
  • Brass stem/PTFE seat
  • PTFE packing/NBR rubber/FKM rubber O-ring

Resources

Specification Sheet
