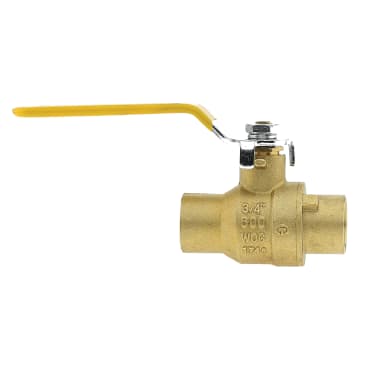

BOSHART 0827C-07 Image 1

BOSHART 0827C-07 3/4IN CC BALL VALVE

MFR Part #: 0827C-07
SKU #: 1115217
Brand: Boshart Industries
UPC: 777808265596
Boshart Industries 0827C-07 Ball Valve, 3/4 in Nominal, C End Style, Forged Brass Body, Full Port, PTFE/NBR Rubber/FKM Rubber Softgoods, Import
Industrial, Irrigation, Plumbing, Pool and Spa Applications
ANSI B16.18|CRN Listed|cUPC IGC 157|FM 1140|UL 125 (YSDT)|UL 1477 (YQNZ)|UL 842 (MHKZ)/(YRBX)/(YRPV)|CSA Approved

Boshart Industries Ball Valve, Series: 0827C Series, 3/4 in Nominal, C End Style, 600 psi CWP Pressure, Up to 300 deg F, Full Port, 3/4 in Orifice, Rubber Grip Handle Actuator, Stainless Steel Ball, 2.81 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/NBR Rubber/FKM Rubber Softgoods, Import

Boshart Industries Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

Product Details

Boshart Industries Ball Valve, Series: 0827C Series, 3/4 in Nominal, C End Style, 600 psi CWP Pressure, Up to 300 deg F, Full Port, 3/4 in Orifice, Rubber Grip Handle Actuator, Stainless Steel Ball, 2.81 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/NBR Rubber/FKM Rubber Softgoods, Import

Boshart Industries Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

Attributes

Connection Type: C
Country Of Origin: CHINA
Inlet to Outlet Length: 2.81 in
Nominal Size: 3/4 in
Operator Type: Rubber Grip Handle
Pressure Rating: 600 psi CWP
Ball Material: Stainless Steel
Body Material: Forged Brass
Domestic/Import: Import
Orifice Size: 3/4 in
Port Type: Full
Series: 0827C Series
Softgoods Material: PTFE/NBR Rubber/FKM Rubber
Temperature Rating: Up to 300 deg F
Top to Inlet Center: 2.09 in
Trim Material: Brass/PTFE

Features

  • CWP - cold working pressure, is an indication of the pressure rating for valves at a temperature range of up to +100 deg F (37 deg C)
  • Blow-out proof stem
  • Zinc plated steel handle with yellow plastic sleeve
  • Brass stem/PTFE seat
  • PTFE packing/NBR rubber/FKM rubber O-ring

Resources

Specification Sheet
