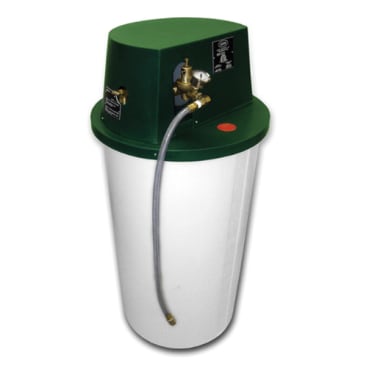

AXIOM SF100-2PRV-L-HP LARGE CAPACITY HIGH PRESSURE WITH 2 PRESSURE REDUCING VALVES
MFR Part #:Â SF100-2PRV-L-HP
SKU #:Â 1163582
Brand:Â Axiom
UPC:Â 691846
AXIOM SF100-2PRV-L-HP Hydronic System Feeder, 25 to 85 psi, 208 L Capacity, 115 VAC
Storage/Mixing Tank with Cover, Pump Suction Hose with Inlet Strainer, Pressure Pump with Thermal Cut-Out, Integral Pressure Switch, Integral Check Valve, Cord and Plug, Pre-Charged Accumulator Tank with EPDM Diaphragm, Manual Diverter Valve, 25 to 85 psig Adjustable Pressure Regulating Valve with Pressure Gauge, Built-In Check Valve, Union Connection, 12 x 900 mm L Flexible Connection Hose with Check Valve and Low Level Pump Cut-Out
CAN/CSA C22.2 No. 68 Certified|cETLus Intertek Listed|UL73 9901055 Listed
Product Details
Attributes
Features
Resources
AXIOM Hydronic System Feeder, 115 VAC, 60 Hz, 25 to 85 psi, 208 L Capacity, 53 in H x 33 in W
The SF100 contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy-to-install and operate. It is compatible with both water and water/glycol solutions.
Capacity:
208 L
Dimensions:
53 in H x 33 in W
Frequency Rating:
60 Hz
Pressure Rating:
25 to 85 psi
Voltage Rating:
115 VAC
- 208 L tank for storage and mixing
- Plugs into any standard 115 VAC outlet
- Fluid level switch shuts the pump-off if the storage tank level gets low
- Accumulator tank prevents excessive pump cycling
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Diverter valve for purging of air on initial start-up and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Flexible connection hose with system check valve makes installation easy
Product Details
AXIOM Hydronic System Feeder, 115 VAC, 60 Hz, 25 to 85 psi, 208 L Capacity, 53 in H x 33 in W
The SF100 contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy-to-install and operate. It is compatible with both water and water/glycol solutions.
Attributes
Capacity:Â 208 L
Dimensions:Â 53 in H x 33 in W
Frequency Rating:Â 60 Hz
Pressure Rating:Â 25 to 85 psi
Voltage Rating:Â 115 VAC
Features
- 208 L tank for storage and mixing
- Plugs into any standard 115 VAC outlet
- Fluid level switch shuts the pump-off if the storage tank level gets low
- Accumulator tank prevents excessive pump cycling
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Diverter valve for purging of air on initial start-up and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Flexible connection hose with system check valve makes installation easy
