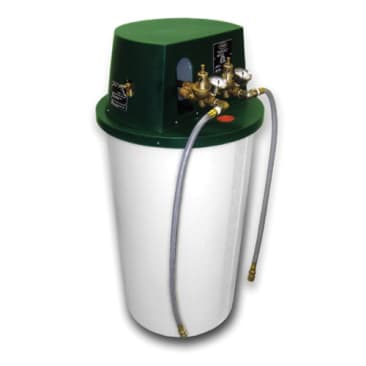

AXIOM SF100-2PRV-HP HIGH PRESSURE WITH 2 PRESSURE REDUCING VALVES
MFR Part #:Â SF100-2PRV-HP
SKU #:Â 1163581
Brand:Â Axiom
UPC:Â 691845
AXIOM SF100-2PRV-HP Packaged Hydronic System Feeder Pressurization Unit, 1.4 gpm
1 Year Limited
(2) Brass Outlet High Pressure Reducing Valve
CAN/CSA C22.2 No. 68 Certified|cETLus Listed|UL 73 Listed
Product Details
Attributes
Features
Resources
AXIOM Packaged Hydronic System Feeder Pressurization Unit, Series: SF100, 25 to 85 psi, 1.4 gpm Flow Rate, 170 deg F, 24 in W x 49 in H
The SF100-2PRV contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy-to-install and operate. It is compatible with both water and water/glycol solutions.
Dimensions:
24 in W x 49 in H
Flow Rate:
1.4 gpm
Pressure Rating:
25 to 85 psi
Series:
SF100
Temperature Rating:
170 deg F
- 55 US gal tank for storage and mixing
- Power supply plugs into any standard 115 VAC outlet
- Accumulator tank prevents excessive pump cycling
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Diverter valve for purging of air on initial start-up and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Fluid level switch shuts the pump-off if the storage tank level gets low
- Flexible connection hose with system check valve makes installation easy
Product Details
AXIOM Packaged Hydronic System Feeder Pressurization Unit, Series: SF100, 25 to 85 psi, 1.4 gpm Flow Rate, 170 deg F, 24 in W x 49 in H
The SF100-2PRV contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy-to-install and operate. It is compatible with both water and water/glycol solutions.
Attributes
Dimensions:Â 24 in W x 49 in H
Flow Rate:Â 1.4 gpm
Pressure Rating:Â 25 to 85 psi
Series:Â SF100
Temperature Rating:Â 170 deg F
Features
- 55 US gal tank for storage and mixing
- Power supply plugs into any standard 115 VAC outlet
- Accumulator tank prevents excessive pump cycling
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Diverter valve for purging of air on initial start-up and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Fluid level switch shuts the pump-off if the storage tank level gets low
- Flexible connection hose with system check valve makes installation easy
