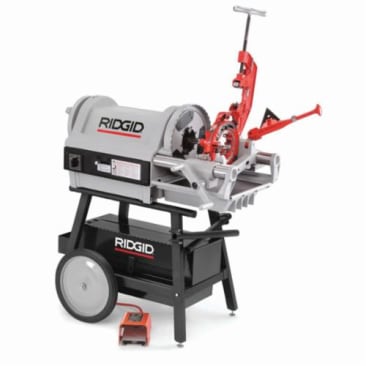

RIDGID 26122 1224 1/2-4 240V 60HZ BSPT
MFR Part #: 26122
SKU #: 1095807
Brand: RIDGID®
UPC: 0095691261229
RIDGID® 26122 1224 Kit Threading Machine Kit, 1/2 to 4 in Pipe, 1/4 to 2 in Bolt, 240 VAC, 1.5 hp, 36/12 rpm Speed
Lifetime
26137 - 911 1/4 to 2 in BSPT, 1224 Self-Opening, RH Die Head, 26147 - 913 1/4 to 2 in BSPT 1224 Quick-Opening, LH Die Head, 33642 - 1224 H.S. BSPT Dies, 66665 - 1/2 to 3/4 in Universal Alloy Set, 66670 - 1 to 2 in Universal Alloy Set, 26212 - 1/4 to 4 in Wheel Type Cutter, 26217 - 1/4 to 4 in Blade Type Reamer, 33125 - F229 3 and 4 HD Wheel Cutter, 46030 - 3/16 in Hex Key, 46040 - 7/32 in Hex Key, 46190 - 1/4 in Hex Key, 70835 - Nu-Clear Oil and 83975 - 3/4 COMB Wrench
Product Details
Attributes
Features
Resources
RIDGID® Threading Machine Kit, Kit, 1/2 to 4 in, 36/12 rpm, 1.5 hp, 240 VAC, 8 A, 1/4 to 2 in Bolt, Reversing: Yes, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control
The RIDGID® model 1224 is the industry standard 4 in threading machine. Thousands of satisfied customers around the world give testimony of its dependability.
Amperage Rating:
8 A
Bare Tool/Kit:
Kit
Bolt Size:
1/4 to 2 in
Control Type:
Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch
Horsepower:
1.5 hp
Pipe Capacity:
1/2 to 4 in
Reversing:
Yes
Speed:
36/12 rpm
Voltage Rating:
240 VAC
- The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
- An induction motor helps minimize noise
- A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
- Constant and proper lubrication of dies and workpiece with through head oiling
- Two-speed gear box with a 3:1 ratio
- Hammer-type chuck with replaceable rocker action jaw inserts
- Cam action rear centering device
- Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
- Through die head oiling
- Versatility: threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
- Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
- Low voltage operation: special start/run capacitors allow operation in less than ideal conditions
Product Details
RIDGID® Threading Machine Kit, Kit, 1/2 to 4 in, 36/12 rpm, 1.5 hp, 240 VAC, 8 A, 1/4 to 2 in Bolt, Reversing: Yes, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control
The RIDGID® model 1224 is the industry standard 4 in threading machine. Thousands of satisfied customers around the world give testimony of its dependability.
Attributes
Amperage Rating: 8 A
Bare Tool/Kit: Kit
Bolt Size: 1/4 to 2 in
Control Type: Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch
Horsepower: 1.5 hp
Pipe Capacity: 1/2 to 4 in
Reversing: Yes
Speed: 36/12 rpm
Voltage Rating: 240 VAC
Features
- The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
- An induction motor helps minimize noise
- A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
- Constant and proper lubrication of dies and workpiece with through head oiling
- Two-speed gear box with a 3:1 ratio
- Hammer-type chuck with replaceable rocker action jaw inserts
- Cam action rear centering device
- Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
- Through die head oiling
- Versatility: threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
- Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
- Low voltage operation: special start/run capacitors allow operation in less than ideal conditions
