1/7HP MOTOR BURNER
MFR Part #: 048S34S361
SKU #: 0444464
Brand: Marathon®
UPC: 722856041579

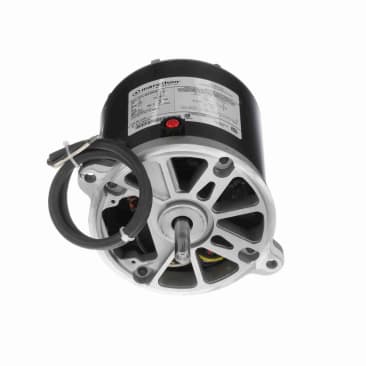

LEESON®® 048S34S361 2-Pole Continuous Duty Split Phase AC Motor, Semi-Enclosed Enclosure, 0.14 hp, 115 VAC, 60 Hz, 1 Phase, 48MZ Frame, 3450 rpm Speed, 2-Bolt Round Flange Mount
For residential and commercial hot water pressure/steam cleaners
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
LEESON®® AC Motor, 2-Pole Continuous Duty Split Phase, Oil Burner Motors Application, 0.14 hp, 115 VAC, 2.3 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Semi-Enclosed Enclosure, 48MZ Frame, 0.5 in Dia x 1.84 in L Shaft, Selective CW Rotation, 1 Service Factor, Sleeve Bearing, 2-Bolt Round Flange Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 7.7 in L
Amperage Rating:
2.3 A
Application Type:
Oil Burner Motors
Country Of Origin:
Mexico
Frame:
48MZ
Frequency Rating:
60 Hz
Horsepower:
.14 hp
Phase:
1
Rotation:
Selective CW
Shaft Size:
0.5 in Dia x 1.84 in L
Speed:
3450 rpm
Type:
2-Pole Continuous Duty Split Phase
Voltage Rating:
115 VAC
Bearing Type:
Sleeve
Dimensions:
7.7 in L
Enclosure Type:
Semi-Enclosed
Insulation Class:
Class B
Material:
Rolled Steel
Mounting Type:
2-Bolt Round Flange
Number of Speeds:
1
Service Factor:
1
Temperature Rating:
40 deg C
- 20 in long leads from a 1/2 in NPT opening
- Horizontal motor orientation
- Double shielded ball bearings provide longer service life
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted)
- Various mounting configurations (as noted)
- Full stainless steel exterior promotes resistance to water and chemical corrosion
- Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure
- Stainless steel output shaft seals protect against external contaminants
- Insulation systems deliver superior protection against voltage spikes
Product Details
LEESON®® AC Motor, 2-Pole Continuous Duty Split Phase, Oil Burner Motors Application, 0.14 hp, 115 VAC, 2.3 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Semi-Enclosed Enclosure, 48MZ Frame, 0.5 in Dia x 1.84 in L Shaft, Selective CW Rotation, 1 Service Factor, Sleeve Bearing, 2-Bolt Round Flange Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 7.7 in L
Attributes
Amperage Rating: 2.3 A
Application Type: Oil Burner Motors
Country Of Origin: Mexico
Frame: 48MZ
Frequency Rating: 60 Hz
Horsepower: .14 hp
Phase: 1
Rotation: Selective CW
Shaft Size: 0.5 in Dia x 1.84 in L
Speed: 3450 rpm
Type: 2-Pole Continuous Duty Split Phase
Voltage Rating: 115 VAC
Bearing Type: Sleeve
Dimensions: 7.7 in L
Enclosure Type: Semi-Enclosed
Insulation Class: Class B
Material: Rolled Steel
Mounting Type: 2-Bolt Round Flange
Number of Speeds: 1
Service Factor: 1
Temperature Rating: 40 deg C
Features
- 20 in long leads from a 1/2 in NPT opening
- Horizontal motor orientation
- Double shielded ball bearings provide longer service life
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted)
- Various mounting configurations (as noted)
- Full stainless steel exterior promotes resistance to water and chemical corrosion
- Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure
- Stainless steel output shaft seals protect against external contaminants
- Insulation systems deliver superior protection against voltage spikes
