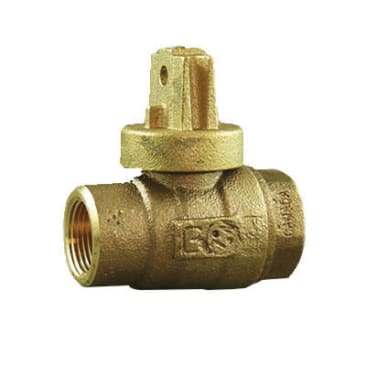

CAMBRIDGE 202NL-F3F3 3/4 BALL VALVE FE X FE
MFR Part #: 202NL-F3F3
SKU #: 0146150
Brand: CAMBRIDGE BRASS™
UPC: 400000090382
CAMBRIDGE BRASS™ 202NL Series 202NL-F3F3 Ball Style Curb Stop With Drain, 3/4 in Nominal, FIP, Full Port, 300 psi
ANSI/NSF 61-8/372|ASTM B584|AWWA C800
Product Details
Attributes
Features
Resources
CAMBRIDGE BRASS™ Ball Style Curb Stop With Drain, 202NL Series, 3/4 in Nominal, FIP Connection, Full Port, 300 psi, Brass Body, Lead-Free, 2-1/2 in Top to Inlet Center, 2.98 in Inlet to Outlet Length, 4.9 in Width, 2-1/2 in Height
Body Material:
Brass
Connection Type:
FIP
Fitting/Connector Type:
Coupling
Height:
2-1/2 in
Inlet to Outlet Length:
2.98 in
Lead-Free/Contains Lead:
Lead-Free
Nominal Size:
3/4 in
Port Type:
Full
Pressure Rating:
300 psi
Series:
202NL Series
Top to Inlet Center:
2-1/2 in
Width:
4.9 in
- Blowout-proof design
- Encapsulated lugs under cap provide 90 deg open to close operation
- Flow can in either direction
- Hole for attaching curb box rod or handle provided in cap
Product Details
CAMBRIDGE BRASS™ Ball Style Curb Stop With Drain, 202NL Series, 3/4 in Nominal, FIP Connection, Full Port, 300 psi, Brass Body, Lead-Free, 2-1/2 in Top to Inlet Center, 2.98 in Inlet to Outlet Length, 4.9 in Width, 2-1/2 in Height
Attributes
Body Material: Brass
Connection Type: FIP
Fitting/Connector Type: Coupling
Height: 2-1/2 in
Inlet to Outlet Length: 2.98 in
Lead-Free/Contains Lead: Lead-Free
Nominal Size: 3/4 in
Port Type: Full
Pressure Rating: 300 psi
Series: 202NL Series
Top to Inlet Center: 2-1/2 in
Width: 4.9 in
Features
- Blowout-proof design
- Encapsulated lugs under cap provide 90 deg open to close operation
- Flow can in either direction
- Hole for attaching curb box rod or handle provided in cap
