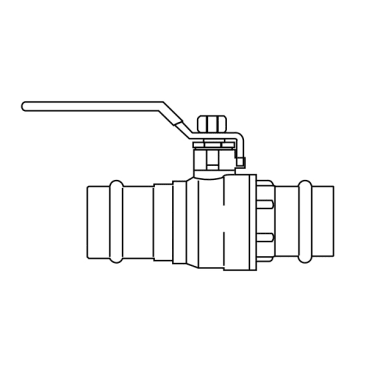

BMI 13518 Image 1

BMI 13518 1 1/2 PRESS-FIT BALL VLV 250WOG LF

MFR Part #: 13518
SKU #: 1192086
Brand: BMI®
UPC: 777701135187
BMI® 13518 Lead-Free Straight Ball Valve, 1-1/2 in Nominal, Press-Fit End Style, Brass Body, Full Port, PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring Softgoods
NSF/ANSI 61 and 372-2010 | IAPMO PS117 | ICG-157

BMI® Ball Valve, Lead-Free Straight, 1-1/2 in Nominal, Press-Fit End Style, 250 psi Pressure, -20 to 300 deg F, Full Port, 304 Stainless Steel Ball, 5.35 in Inlet to Outlet Length, 2.74 in Top to Inlet Center, Brass Body, Zinc Plated Steel Handle Nut/Lock Washer, Steel Handle, C37700 Lead-Free Brass Packing Nut/Stem Trim, PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring Softgoods, Polished Chrome

Product Details

BMI® Ball Valve, Lead-Free Straight, 1-1/2 in Nominal, Press-Fit End Style, 250 psi Pressure, -20 to 300 deg F, Full Port, 304 Stainless Steel Ball, 5.35 in Inlet to Outlet Length, 2.74 in Top to Inlet Center, Brass Body, Zinc Plated Steel Handle Nut/Lock Washer, Steel Handle, C37700 Lead-Free Brass Packing Nut/Stem Trim, PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring Softgoods, Polished Chrome

Attributes

Connection Type: Press-Fit
Inlet to Outlet Length: 5.35 in
Nominal Size: 1-1/2 in
Pressure Rating: 250 psi
Ball Material: 304 Stainless Steel
Body Material: Brass
Finish/Color: Polished Chrome
Port Type: Full
Softgoods Material: PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring
Temperature Rating: -20 to 300 deg F
Top to Inlet Center: 2.74 in
Trim Material: Zinc Plated Steel Handle Nut/Lock Washer, Steel Handle, C37700 Lead-Free Brass Packing Nut/Stem
Type: Lead-Free Straight

Features

  • High corrosion resistance chrome plated handle
  • Stem seal, O-ring and adjustable packing nut
  • Blow out proof stem assembly
  • Compatible with all major press tools

Resources

Catalog
