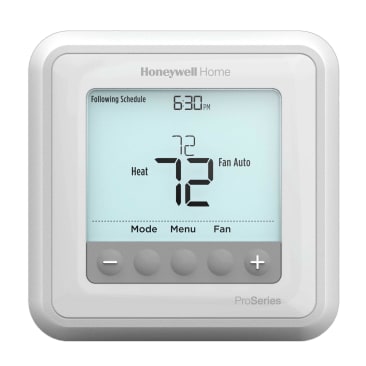

HONEYWELL TH6210U2001/U Image 1

HONEYWELL TH6210U2001/U T6 PRO TRADE PROGRAMMABLE THERMOSTAT

MFR Part #: TH6210U2001/U
SKU #: 1165819
Brand: Honeywell Home
UPC: 085267554404
Honeywell Home Tradeline® TH6210U2001/U 6000 Thermostat, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2, O/B, Y, G, K, L/A, E Terminal, Import
Thermostat, UWP Mounting System, Installation (J-box) Adapter, Small Decorative Cam Lock, Screw and Anchor, Installation Guide, User Guide and (2) AA Batteries
Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump and Air to Air Heat

Honeywell Home Tradeline® Thermostat, Series: 6000, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2, O/B, Y, G, K, L/A, E Terminal Designations, Heat/Cool/Auto/Off/Emergency Heat System Switching, Auto/On/Circulate/Follow Schedule Fan Switching, 3 Stage, 2 Heat Pump, 1 Conventional Stages Heat, 1 Heat Pump, 1 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 5.44 sq-in LED Back-Lit Display, 20 to 30 VAC, Battery/Hardwired Power Source, 4-1/16 in L x 4-1/16 in W x 1-3/32 in D, Import

The T Series thermostats are designed with contractors in mind. The T6 Pro 7-day, 5-2, 5-1-1, or nonprogrammable thermostat features an on-screen menu with familiar installer setup steps for easy installation. With the UWP mounting system, you can stan

Product Details

Honeywell Home Tradeline® Thermostat, Series: 6000, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2, O/B, Y, G, K, L/A, E Terminal Designations, Heat/Cool/Auto/Off/Emergency Heat System Switching, Auto/On/Circulate/Follow Schedule Fan Switching, 3 Stage, 2 Heat Pump, 1 Conventional Stages Heat, 1 Heat Pump, 1 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 5.44 sq-in LED Back-Lit Display, 20 to 30 VAC, Battery/Hardwired Power Source, 4-1/16 in L x 4-1/16 in W x 1-3/32 in D, Import

The T Series thermostats are designed with contractors in mind. The T6 Pro 7-day, 5-2, 5-1-1, or nonprogrammable thermostat features an on-screen menu with familiar installer setup steps for easy installation. With the UWP mounting system, you can stan

Attributes

Control Range: 40 to 90 deg F Heat/50 to 99 deg F Cool
Country Of Origin: Mexico
Differential: 1 deg F
Dimensions: 4-1/16 in L x 4-1/16 in W x 1-3/32 in D
Display Type: 5.44 sq-in LED Back-Lit
Domestic/Import: Import
Fan Switching: Auto/On/Circulate/Follow Schedule
Humidity Range: 5 to 90% Non-Condensing
Number of Stages: 3
Power Source: Battery/Hardwired
Series: 6000
Stages Cool: 1 Heat Pump, 1 Conventional
Stages Heat: 2 Heat Pump, 1 Conventional
Switch Type: Relay
System Switching: Heat/Cool/Auto/Off/Emergency Heat
Terminal Designations: RC, R, C, W, W2, O/B, Y, G, K, L/A, E
Thermostat Type: Programmable
Voltage Rating: 20 to 30 VAC

Features

  • Medium display, soft key controls
  • 37 to 102 deg F operating temperature
  • Ambient air temperature control mode selection
  • Automatic or manual changeover
  • Backlight and Contrast Controls Adjustable for better readability
  • Designed to operate with up to 2 Transformers
  • 1H/1C heat pump and 1H/1C conventional
  • Easy upsell to a connected T6 Pro Smart when your customer is ready for WiFi (C-wire required)
  • Simple push-button functionality
  • Filter change reminders

Resources

Instruction/Installation Manual
Specification Sheet
