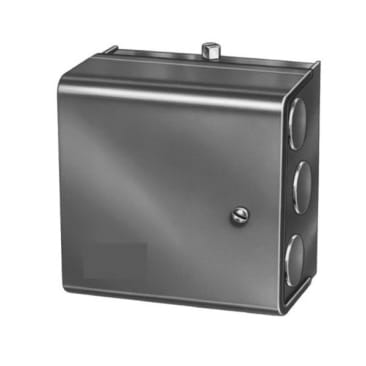

HONEYWELL L4081A1197 MULTIPLE AQUASTAT CONTROLLER
MFR Part #:Â L4081A1197
SKU #:Â 1136114
Brand:Â Honeywell Home
UPC:Â 400008622950
Honeywell Home L4081A1197 High and Low Limit Aquastat Controller, 0.25 to 12 VDC, 0.25 A, Switching Action: (2) SPST
For regulating boiler water temperature in gas or oil fired hydronic heating system
CSA Certified|UL Listed
Product Details
Attributes
Features
Resources
Honeywell Home High and Low Limit Aquastat Controller, 0.25 A, 0.25 to 12 VDC, Switching Action: (2) SPST, Sensing Element: Liquid Filled, Differential Temperature: 10 to 25 deg F, 10 deg F, Horizontal Mounting, 2-3/4 in L, 3-7/8 in H, 4-1/8 in W, 130 to 240 deg F
Amperage Rating:
.25 A
Differential Temperature:
10 to 25 deg F, 10 deg F
Height:
3-7/8 in
Length:
2-3/4 in
Mounting Type:
Horizontal
Sensing Element:
Liquid Filled
Switching Action:
(2) SPST
Temperature Rating:
130 to 240 deg F
Voltage Rating:
0.25 to 12 VDC
Width:
4-1/8 in
- An immersion type liquid-filled sensing element actuates two snap switches
- One switch operates as a high limit control
- The other switch operates as a low limit and/or circulator control, depending on the model
- Controller may be mounted in any positioning and needs no leveling
- Separate, easy to read, calibrated dial and set point adjustments for each switch
- Differential adjustment on low limit or circulator switch on select models
- All adjustments accessible inside front cover
- Push-in terminals for quick connecting
- Single sensing element for easy installation
- Two SPST snap switches act independently at respective temperature settings
Product Details
Honeywell Home High and Low Limit Aquastat Controller, 0.25 A, 0.25 to 12 VDC, Switching Action: (2) SPST, Sensing Element: Liquid Filled, Differential Temperature: 10 to 25 deg F, 10 deg F, Horizontal Mounting, 2-3/4 in L, 3-7/8 in H, 4-1/8 in W, 130 to 240 deg F
Attributes
Amperage Rating:Â .25 A
Differential Temperature:Â 10 to 25 deg F, 10 deg F
Height:Â 3-7/8 in
Length:Â 2-3/4 in
Mounting Type:Â Horizontal
Sensing Element:Â Liquid Filled
Switching Action:Â (2) SPST
Temperature Rating:Â 130 to 240 deg F
Voltage Rating:Â 0.25 to 12 VDC
Width:Â 4-1/8 in
Features
- An immersion type liquid-filled sensing element actuates two snap switches
- One switch operates as a high limit control
- The other switch operates as a low limit and/or circulator control, depending on the model
- Controller may be mounted in any positioning and needs no leveling
- Separate, easy to read, calibrated dial and set point adjustments for each switch
- Differential adjustment on low limit or circulator switch on select models
- All adjustments accessible inside front cover
- Push-in terminals for quick connecting
- Single sensing element for easy installation
- Two SPST snap switches act independently at respective temperature settings
