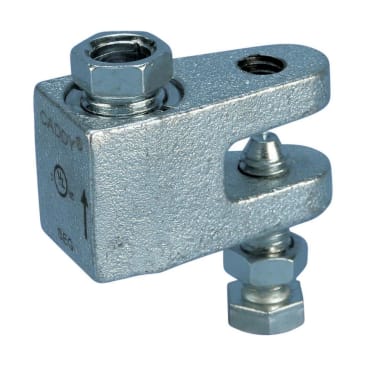

CADDY CRLB37EG 3/8 ROD LOCK BEAM CLAMP
MFR Part #: CRLB37EG
SKU #: 1159601
Brand: nVent | CADDY®
UPC: 78285664943
nVent CADDY nVent CADDY CRLB37EG Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in THK Flange, 250/500 lb Static Load, Cast Iron, Electro-Galvanized
Datacom and Low Voltage, Electrical, Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications
Product Details
Attributes
Features
Resources
nVent CADDY nVent CADDY Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Flange Thickness, 250/500 lb Static Load, For Use With: Rod Lock Threaded Rod Mounting System, Specifications: 4 in Pipe, 1/8 to 5/16 in Jaw Opening, Cast Iron, Electro-Galvanized, 2.06 in L x 1 in W x 1.1875 in H
Dimensions:
2.06 in L x 1 in W x 1.1875 in H
Finish:
Electro-Galvanized
Flange Thickness:
1/8 to 3/8 in
Load Capacity:
250/500 lb Static
Material:
Cast Iron
Rod Size:
3/8 in
Specifications:
4 in Pipe, 1/8 to 5/16 in Jaw Opening
Suitable For Use With:
Rod Lock Threaded Rod Mounting System
- Pre-fabricated assemblies easily lift and lock into place, helping to save time and money
- Easy push-to-install design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Lock nut can be finger tightened, locking the rod in place
- Works with slightly damaged threads and minor burrs on the threaded rod
Product Details
nVent CADDY nVent CADDY Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Flange Thickness, 250/500 lb Static Load, For Use With: Rod Lock Threaded Rod Mounting System, Specifications: 4 in Pipe, 1/8 to 5/16 in Jaw Opening, Cast Iron, Electro-Galvanized, 2.06 in L x 1 in W x 1.1875 in H
Attributes
Dimensions: 2.06 in L x 1 in W x 1.1875 in H
Finish: Electro-Galvanized
Flange Thickness: 1/8 to 3/8 in
Load Capacity: 250/500 lb Static
Material: Cast Iron
Rod Size: 3/8 in
Specifications: 4 in Pipe, 1/8 to 5/16 in Jaw Opening
Suitable For Use With: Rod Lock Threaded Rod Mounting System
Features
- Pre-fabricated assemblies easily lift and lock into place, helping to save time and money
- Easy push-to-install design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Lock nut can be finger tightened, locking the rod in place
- Works with slightly damaged threads and minor burrs on the threaded rod
