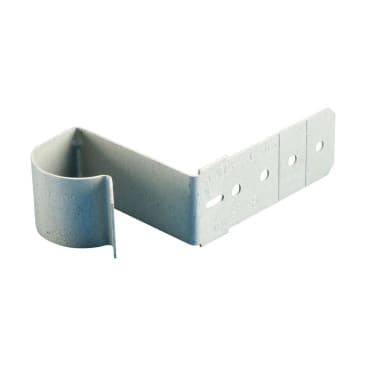

CADDY CS812 SCREW ON CONDUIT SUPPORT
MFR Part #: CS812
SKU #: 1105349
Brand: nVent | CADDY®
UPC: 78285632606
nVent CADDY CS812 Screw-On Cable/Conduit to Stud Attachment, 1/2 in, 3/4 in EMT Conduit, Steel, Caddy® Armor
Electrical Fixing, Fastening, Data Communication and Low Voltage Applications
UL Recognized|cUL Recognized|cULus Listed|cULus Recognized|cUL ZODZ7.E256718|CSA C22.2 No. 18.5|UL ZODZ.E256718|ANSI/UL 1565|NEC 358.30(A)|CEC 12-1404|CEC 12-618
Product Details
Attributes
Features
Resources
nVent CADDY Cable/Conduit to Stud Attachment, Screw-On, Series: CS812, 1/2 in, 3/4 in EMT Conduit Conduit/Cable Size, 1-1/2 in D Box, Steel, Caddy® Armor
Conduit/Cable Size:
1/2 in, 3/4 in EMT Conduit
Country Of Origin:
US
Finish:
Caddy® Armor
Material:
Steel
Series:
CS812
Specifications:
1-1/2 in D Box
Type:
Screw-On
- Accommodates EMT conduit and MC/AC cable
- Easily locate the fastener on the stud, keeping your conduit in line with box knock out and H-series brackets
- For wood or metal stud
- Eliminates offset bending conduit
- Compliant with NEC the article 358.30(A), which requires conduit support within 36 in of an electrical box
- Compliant with CEC Rule 12-1404, which requires conduit support within 1 m of an electrical box
- Compliant with CEC Rule 12-618, which requires support of armored cable within 300 mm (12 in) of an electrical box
Product Details
nVent CADDY Cable/Conduit to Stud Attachment, Screw-On, Series: CS812, 1/2 in, 3/4 in EMT Conduit Conduit/Cable Size, 1-1/2 in D Box, Steel, Caddy® Armor
Attributes
Conduit/Cable Size: 1/2 in, 3/4 in EMT Conduit
Country Of Origin: US
Finish: Caddy® Armor
Material: Steel
Series: CS812
Specifications: 1-1/2 in D Box
Type: Screw-On
Features
- Accommodates EMT conduit and MC/AC cable
- Easily locate the fastener on the stud, keeping your conduit in line with box knock out and H-series brackets
- For wood or metal stud
- Eliminates offset bending conduit
- Compliant with NEC the article 358.30(A), which requires conduit support within 36 in of an electrical box
- Compliant with CEC Rule 12-1404, which requires conduit support within 1 m of an electrical box
- Compliant with CEC Rule 12-618, which requires support of armored cable within 300 mm (12 in) of an electrical box
