3/4IN STAND-OFF CPVC PIPE HANGER
MFR Part #:Â SOSR075
SKU #:Â 1023069
Brand:Â nVent | ERICO
UPC:Â 77894239366

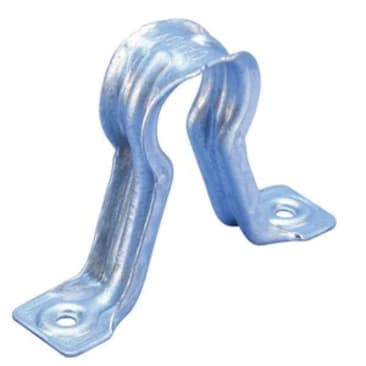

nVent ERICO SOSR Series SOSR075 2-Hole Stand-Off Strap, 3/4 in, Steel, 3-5/8 in W, 18 ga Thick
Mounting Screws
cULus Listed | NFPA 13 | REACH SVHC EC 1907/2006 | RoHS Directive 2011/65/EU | TSCA Certified | UL 203
Product Details
Attributes
Features
Resources
nVent ERICO 2-Hole Stand-Off Strap, SOSR Series, Fits Pipe Size: 3/4 in, 0.2 in Hole, Steel Body, Finish: Pre-Galvanized, 2-11/16 in Length, 3-5/8 in Width, 1 in Height, 18 ga Thickness, For Use With: CPVC Fire Sprinkler Pipes, Additional Information: 6 ft Hanger Spacing
Country Of Origin:
US
Additional Information:
6 ft Hanger Spacing
Body Material:
Steel
Finish:
Pre-Galvanized
Fits Pipe Size:
3/4 in
Height:
1 in
Hole Size:
.2 in
Length:
2-11/16 in
Nominal Size:
3/4 in
Series:
SOSR Series
Suitable For Use With:
CPVC Fire Sprinkler Pipes
Thickness:
18 ga
Width:
3-5/8 in
- Includes flared edges to protect piping
- Positions pipe 1-1/2 in off the mounting surface eliminating the need for wooden spacer blocks
- Can be mounted in both vertical and horizontal positions on concrete, steel and wood
- Meets the UL 203 stringent upward thrust requirement
- UL listed as both a hanger and pipe restrainer
- Complies with static load requirements of NFPA 13
- Can be used with 3TW backing nut on composite wood joist installations
Product Details
nVent ERICO 2-Hole Stand-Off Strap, SOSR Series, Fits Pipe Size: 3/4 in, 0.2 in Hole, Steel Body, Finish: Pre-Galvanized, 2-11/16 in Length, 3-5/8 in Width, 1 in Height, 18 ga Thickness, For Use With: CPVC Fire Sprinkler Pipes, Additional Information: 6 ft Hanger Spacing
Attributes
Country Of Origin:Â US
Additional Information:Â 6 ft Hanger Spacing
Body Material:Â Steel
Finish:Â Pre-Galvanized
Fits Pipe Size:Â 3/4 in
Height:Â 1 in
Hole Size:Â .2 in
Length:Â 2-11/16 in
Nominal Size:Â 3/4 in
Series:Â SOSR Series
Suitable For Use With:Â CPVC Fire Sprinkler Pipes
Thickness:Â 18 ga
Width:Â 3-5/8 in
Features
- Includes flared edges to protect piping
- Positions pipe 1-1/2 in off the mounting surface eliminating the need for wooden spacer blocks
- Can be mounted in both vertical and horizontal positions on concrete, steel and wood
- Meets the UL 203 stringent upward thrust requirement
- UL listed as both a hanger and pipe restrainer
- Complies with static load requirements of NFPA 13
- Can be used with 3TW backing nut on composite wood joist installations
