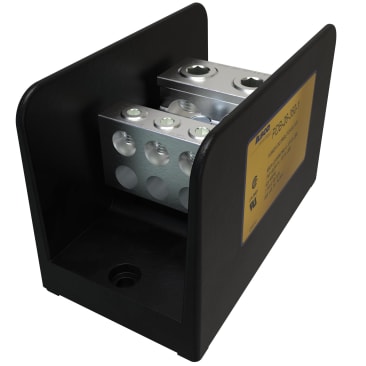

ILSCO PDB-26-350-1 2P 350MCM X 6P 2/0 DIST BLOCK
MFR Part #: PDB-26-350-1
SKU #: 0732308
Brand: ILSCO®
UPC: 78366971043
ILSCO® ClearChoice® PDB-26-350-1 Type PDB Dual Rated Power Distribution Block, 600 VAC, 620 A, 1 Pole, 6 AWG to 350 kcmil, 14 to 2/0 AWG Wire, Aluminum Alloy
Tap Connector Applications
CSA File No. LR29601 | UL 1059 | UL 1953 | UL 486A-B File No. E84782/E112158 | ECCN EAR99 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product Details
Attributes
Features
ILSCO® ClearChoice® Power Distribution Block, Type PDB Dual Rated, 600 VAC, 620 A, 1 Pole, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 350 kcmil, 14 to 2/0 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 3 in L x 5-1/2 in W x 3-1/2 in H Dimensions
Amperage Rating:
620 A
Country Of Origin:
Mexico
Color:
Black
Dimensions:
3 in L x 5-1/2 in W x 3-1/2 in H
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Number of Poles:
1
Primary Connections/Pole:
2
Secondary Connection/Pole:
6
Short Circuit Current Rating:
10 kA
Type:
Type PDB Dual Rated
Voltage Rating:
600 VAC
Wire Size:
6 AWG to 350 kcmil, 14 to 2/0 AWG
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/16 in hex secondary
- Block L
- (2) box lug primary, (6) box lug secondary
- 6 AWG to 350 kcmil primary and 14 to 2/0 AWG secondary wire
- Valox® insulating base
- 90 deg C temperature rating
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
Product Details
ILSCO® ClearChoice® Power Distribution Block, Type PDB Dual Rated, 600 VAC, 620 A, 1 Pole, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 350 kcmil, 14 to 2/0 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 3 in L x 5-1/2 in W x 3-1/2 in H Dimensions
Attributes
Amperage Rating: 620 A
Country Of Origin: Mexico
Color: Black
Dimensions: 3 in L x 5-1/2 in W x 3-1/2 in H
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Number of Poles: 1
Primary Connections/Pole: 2
Secondary Connection/Pole: 6
Short Circuit Current Rating: 10 kA
Type: Type PDB Dual Rated
Voltage Rating: 600 VAC
Wire Size: 6 AWG to 350 kcmil, 14 to 2/0 AWG
Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/16 in hex secondary
- Block L
- (2) box lug primary, (6) box lug secondary
- 6 AWG to 350 kcmil primary and 14 to 2/0 AWG secondary wire
- Valox® insulating base
- 90 deg C temperature rating
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
