ILSCO SGB-4 DUAL RATED LAY-IN LUG 4-14
MFR Part #: SGB-4
SKU #: 1134704
Brand: ILSCO®
UPC: 783669960259

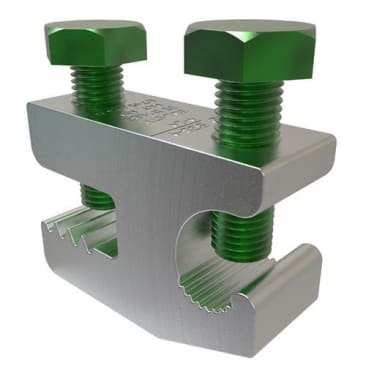

ILSCO® ClearChoice® SGB-4 Type SGB Grounding Clamp, 14 to 4 AWG Conductor, 1/4 in THK Bar, Aluminum Alloy
This product may be subject to ecological fees.
For grounding connector
UL 2703 | UL 467 | UL E34440 | ASTM B117-09 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
ILSCO® ClearChoice® Grounding Clamp, Type SGB, 1/4 in Bar Thickness, Solid/Stranded Conductor, 14 to 4 AWG Conductor, Aluminum Alloy, Electro-Plated Tin, Green, 1.375 in L x 0.5 in W x 0.94 in H
Bar Thickness:
1/4 in
Color:
Green
Conductor Size:
14 to 4 AWG
Conductor Type:
Solid/Stranded
Country Of Origin:
Mexico
Dimensions:
1.375 in L x 0.5 in W x 0.94 in H
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Type:
Type SGB
- Universal to identify ground aids in visual inspection
- Stainless steel hardware for corrosion resistance, greater torque and ease of installation
- Serrations in conductor wire way cuts oxidation
- Lay-in feature provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Electro-tin plated provides low contact resistance
- Unique clamp design, no mounting hardware required, re-usable
- 1/4 in max frame thickness to mount to solar panel frames
- Tested to ASTM B117-09 for operating in a salt spray environment
- 7/16 in hex
- Meets ASTM B117-09 resistance to outdoor salt spray
- For grounding and bonding only
Product Details
ILSCO® ClearChoice® Grounding Clamp, Type SGB, 1/4 in Bar Thickness, Solid/Stranded Conductor, 14 to 4 AWG Conductor, Aluminum Alloy, Electro-Plated Tin, Green, 1.375 in L x 0.5 in W x 0.94 in H
Attributes
Bar Thickness: 1/4 in
Color: Green
Conductor Size: 14 to 4 AWG
Conductor Type: Solid/Stranded
Country Of Origin: Mexico
Dimensions: 1.375 in L x 0.5 in W x 0.94 in H
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Type: Type SGB
Features
- Universal to identify ground aids in visual inspection
- Stainless steel hardware for corrosion resistance, greater torque and ease of installation
- Serrations in conductor wire way cuts oxidation
- Lay-in feature provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Electro-tin plated provides low contact resistance
- Unique clamp design, no mounting hardware required, re-usable
- 1/4 in max frame thickness to mount to solar panel frames
- Tested to ASTM B117-09 for operating in a salt spray environment
- 7/16 in hex
- Meets ASTM B117-09 resistance to outdoor salt spray
- For grounding and bonding only
