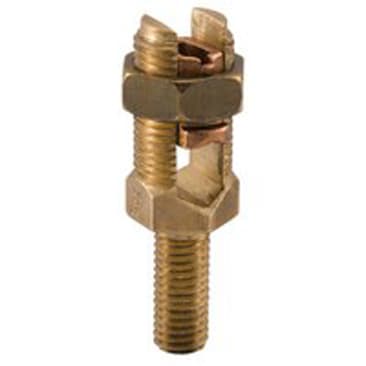

ILSCO SSS-4 BRONZE SERVICE POST CONNECTOR 3/8STANDARD 2STR
MFR Part #: SSS-4
SKU #: 0732462
Brand: ILSCO®
UPC: 783669862164
ILSCO® SSS-4 SSS Male Post Connector, (1) Conductors, 2 to 4 AWG Conductor, 3/8-16 x 5/8 in Stud, Bronze
UL 486A/B Listed | UL 8M24 | UL 467 Listed | UL File No E158587 | PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm
Product Details
Attributes
Features
Resources
ILSCO®, SSS-4, Post Connector, Male, Series: SSS, 1 Conductors, 2 to 4 AWG Conductor, 3/8-16 x 5/8 in Stud, Copper to Copper Connection, Specifications: 0.232 to 0.292 in Wire Diameter Range, Bronze, 1-1/16 in H Dimensions
Color:
Bronze
Conductor Size:
2 to 4 AWG
Connection Type:
Copper to Copper
Dimensions:
1-1/16 in H
Material:
Bronze
Number of Conductors:
1
Series:
SSS
Specifications:
0.232 to 0.292 in Wire Diameter Range
Stud Size:
3/8-16 x 5/8 in
Type:
Male
- Body made from high copper content hard drawn rod
- Used for connecting one or two conductors to various sizes external stud or tapped hole
- Certified to maximum wire size of 250 kcmil for UL467 grounding and bonding standard
- 90 deg C Temperature Rating
- 35 kV Voltage Rating
Product Details
ILSCO®, SSS-4, Post Connector, Male, Series: SSS, 1 Conductors, 2 to 4 AWG Conductor, 3/8-16 x 5/8 in Stud, Copper to Copper Connection, Specifications: 0.232 to 0.292 in Wire Diameter Range, Bronze, 1-1/16 in H Dimensions
Attributes
Color: Bronze
Conductor Size: 2 to 4 AWG
Connection Type: Copper to Copper
Dimensions: 1-1/16 in H
Material: Bronze
Number of Conductors: 1
Series: SSS
Specifications: 0.232 to 0.292 in Wire Diameter Range
Stud Size: 3/8-16 x 5/8 in
Type: Male
Features
- Body made from high copper content hard drawn rod
- Used for connecting one or two conductors to various sizes external stud or tapped hole
- Certified to maximum wire size of 250 kcmil for UL467 grounding and bonding standard
- 90 deg C Temperature Rating
- 35 kV Voltage Rating
