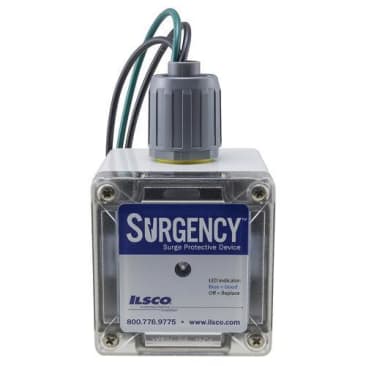

ILSCO RE-050-1R1X-C Image 1

ILSCO RE-050-1R1X-C SURGENCY WHOLE HOUSE SURGE PROTECTOR

MFR Part #: RE-050-1R1X-C
SKU #: 1133989
Brand: ILSCO®
UPC: 78366900999
ILSCO® Surgency® RE-050-1R1X-C Type 2 SPD-RE Split Surge Protective Device With Blue LED Indicator, Electrical Noise Filter, 120/240 VAC, 50/60 Hz, 200 kA SCCR, 1 Phase
5 Years
Mounting Flange Kit
Residential Applications
cULus Listed | UL 1449/1283 | CSA C22.2 No. 269.2-13/CSA C22.2 No. 8-13 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

ILSCO® Surgency® Surge Protective Device, Type 2 SPD-RE Split, Series: RE Series, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-L/L-G, LED Indicator, 1 ph, Environmental Conditions: -40 to 150 deg F Operating Temperature, NEMA 1/2/3/3R/3X/4/4X Enclosure, Panel Mounting, Polycarbonate, 3.23 in L x 3.31 in W Dimensions

Product Details

ILSCO® Surgency® Surge Protective Device, Type 2 SPD-RE Split, Series: RE Series, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-L/L-G, LED Indicator, 1 ph, Environmental Conditions: -40 to 150 deg F Operating Temperature, NEMA 1/2/3/3R/3X/4/4X Enclosure, Panel Mounting, Polycarbonate, 3.23 in L x 3.31 in W Dimensions

Attributes

Country Of Origin: US
Dimensions: 3.23 in L x 3.31 in W
Electrical Ratings: 120/240 VAC
Enclosure Type: NEMA 1/2/3/3R/3X/4/4X
Environmental Conditions: -40 to 150 deg F Operating Temperature
Frequency Rating: 50/60 Hz
Indicator Type: LED
Material: Polycarbonate
Modes of Protection: L-L/L-G
Mounting Type: Panel
Nominal Discharge Current: 20 kA
Peak Surge Current: 50 kA
Phase: 1
Series: RE Series
Short Circuit Current Rating: 200 kA
Type: Type 2 SPD-RE Split

Features

  • Whole house surge protection
  • Compact NEMA polycarbonate enclosure
  • Integrated threaded female hub
  • Protect residence from electrical surges
  • Easily installed outdoors or indoors, non-submersible
  • Easy monitoring of surge protection status
  • Withstands severe lightning strikes
  • Protects valuable electronics and appliances
  • Product longevity in the most demanding environments
