ILSCO SE-050-3Y1X-C Image 1

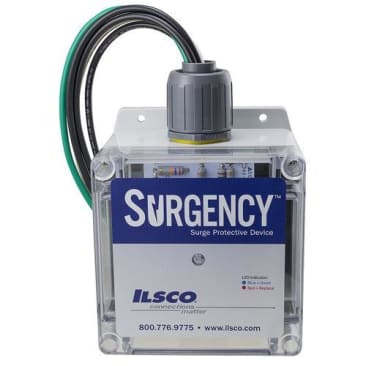

ILSCO SE-050-3Y1X-C 3PH 50/60HZ 208/120V 50KA 700/3000V W/F

MFR Part #: SE-050-3Y1X-C
SKU #: 1134776
Brand: ILSCO®
UPC: 78366901017
ILSCO® Surgency® SE-050-3Y1X-C Type 2 SPD-SE Wye Surge Protective Device With LED Indicator, Electrical Noise Filter, 208Y/120 VAC, 50/60 Hz, 200 kA SCCR, 3 Phase
5 Years
Commercial and Industrial Applications
cULus Listed | UL 1283/UL 1449 | CSA C22.2 No. 269.2-13/CSA C22.2 No. 8-13 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

ILSCO® Surgency® Surge Protective Device, Type 2 SPD-SE Wye, Series: SE Series, 208Y/120 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, LED Indicator, 3 ph, Environmental Conditions: -40 to 150 deg F Operating Temperature, NEMA 1/2/3/3R/3X/4/4X Enclosure, Panel Mounting, Polycarbonate, 4.81 in L x 3.54 in W Dimensions

Product Details

ILSCO® Surgency® Surge Protective Device, Type 2 SPD-SE Wye, Series: SE Series, 208Y/120 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, LED Indicator, 3 ph, Environmental Conditions: -40 to 150 deg F Operating Temperature, NEMA 1/2/3/3R/3X/4/4X Enclosure, Panel Mounting, Polycarbonate, 4.81 in L x 3.54 in W Dimensions

Attributes

Country Of Origin: US
Dimensions: 4.81 in L x 3.54 in W
Electrical Ratings: 208Y/120 VAC
Enclosure Type: NEMA 1/2/3/3R/3X/4/4X
Environmental Conditions: -40 to 150 deg F Operating Temperature
Frequency Rating: 50/60 Hz
Indicator Type: LED
Material: Polycarbonate
Modes of Protection: L-L/L-N/L-G/N-G
Mounting Type: Panel
Nominal Discharge Current: 20 kA
Peak Surge Current: 100 kA
Phase: 3
Series: SE Series
Short Circuit Current Rating: 200 kA
Type: Type 2 SPD-SE Wye

Features

  • Commercial and industrial up to 4-mode surge protection
  • Compact NEMA polycarbonate enclosure
  • First line of defense against externally generated surges
  • Mounted outdoors or indoors external or internal to any electrical panel, non-submersible
  • Easy monitoring of surge protection status
  • Withstands severe lightning strikes, 100 kA unit provides extended service life
  • Protects critical commercial and industrial equipment
