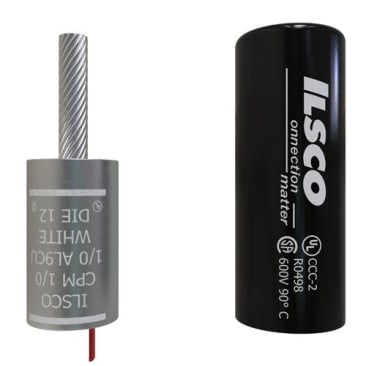

ILSCO CPM-1/0 #1/0 COPPER PIGTAIL CONNECTOR
MFR Part #: CPM-1/0
SKU #: 1016191
Brand: ILSCO®
UPC: 78366900848
ILSCO® ClearChoice® CPM-1/0 Dual Rated Pigtail Adapter With Insulating Cover, 1/0 AWG Conductor, Die Code: 12, 0.292 in Dia x 1-1/4 in L Pin, Aluminum/Copper
For terminating connector
UL 486A-B File No. E62525 | CSA File No. LR29601 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Pigtail Adapter, Dual Rated, Series: CPM, 1/0 AWG Conductor, Die Code: 12, White Color Code, 0.292 in Pin Diameter, 1-1/4 in Pin Length, 1.594 in Barrel Length, 600 VAC, Specifications: 2.093 in L Cover, 2 AWG Pin, 25/64 in ID x 29/32 in OD, Aluminum/Copper, 2.844 in W Dimensions
Barrel Length:
1.594 in
Color Code:
White
Conductor Size:
1/0 AWG
Country Of Origin:
Mexico
Die Code:
12
Dimensions:
2.844 in W
Material:
Aluminum/Copper
Pin Diameter:
.292 in
Pin Length:
1-1/4 in
Series:
CPM
Specifications:
2.093 in L Cover, 2 AWG Pin, 25/64 in ID x 29/32 in OD
Type:
Dual Rated
Voltage Rating:
600 VAC
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
Product Details
ILSCO® ClearChoice® Pigtail Adapter, Dual Rated, Series: CPM, 1/0 AWG Conductor, Die Code: 12, White Color Code, 0.292 in Pin Diameter, 1-1/4 in Pin Length, 1.594 in Barrel Length, 600 VAC, Specifications: 2.093 in L Cover, 2 AWG Pin, 25/64 in ID x 29/32 in OD, Aluminum/Copper, 2.844 in W Dimensions
Attributes
Barrel Length: 1.594 in
Color Code: White
Conductor Size: 1/0 AWG
Country Of Origin: Mexico
Die Code: 12
Dimensions: 2.844 in W
Material: Aluminum/Copper
Pin Diameter: .292 in
Pin Length: 1-1/4 in
Series: CPM
Specifications: 2.093 in L Cover, 2 AWG Pin, 25/64 in ID x 29/32 in OD
Type: Dual Rated
Voltage Rating: 600 VAC
Features
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
