ILSCO CPM-4 #4 COPPER PIGTAIL CONNECTOR
MFR Part #: CPM-4
SKU #: 1016188
Brand: ILSCO®
UPC: 78366900842

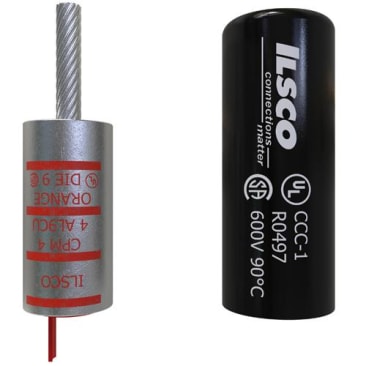

ILSCO® ClearChoice® CPM-4 Dual Rated Pigtail Adapter With Insulating Cover, 4 AWG Conductor, Die Code: 9, 0.184 in Dia x 7/8 in L Pin, Aluminum/Copper
For terminating connector
UL 486A-B File No. E62525 | CSA File No. LR29601 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Pigtail Adapter, Dual Rated, Series: CPM, 4 AWG Conductor, Die Code: 9, Orange Color Code, 0.184 in Pin Diameter, 7/8 in Pin Length, 1-1/4 in Barrel Length, 600 VAC, Specifications: 1-11/16 in L Cover, 6 AWG Pin, 1/4 in ID x 21/32 in OD, Aluminum/Copper, 2-1/8 in W Dimensions
Barrel Length:
1-1/4 in
Color Code:
Orange
Conductor Size:
4 AWG
Country Of Origin:
Mexico
Die Code:
9
Dimensions:
2-1/8 in W
Material:
Aluminum/Copper
Pin Diameter:
.184 in
Pin Length:
7/8 in
Series:
CPM
Specifications:
1-11/16 in L Cover, 6 AWG Pin, 1/4 in ID x 21/32 in OD
Type:
Dual Rated
Voltage Rating:
600 VAC
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
