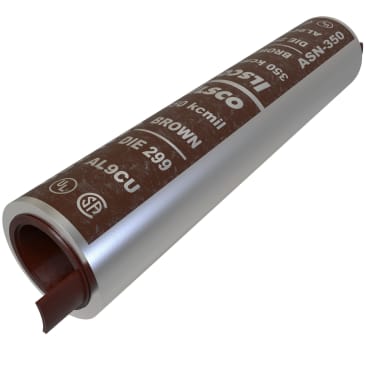

ILSCO ASN-350 ALUMINUM COMPRESSION SPLICE SLEEVE 350MCM
MFR Part #: ASN-350
SKU #: 1231389
Brand: ILSCO®
UPC: 078366918482
ILSCO® ClearChoice® SureCrimp® ASN-350 Type ASN Dual Rated Compression Sleeve, 3/0 AWG to 350 kcmil Aluminum/Copper Conductor, Die Code: 299, 5-1/8 in L, Aluminum Alloy
For use with splicer and reducer
UL 486A-B | UL 453G File No. E6207 | CSA File No. LR29601 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
ILSCO® ClearChoice® SureCrimp® Compression Sleeve, Type ASN Dual Rated, Aluminum/Copper Conductor, 3/0 AWG to 350 kcmil Conductor, Die Code: 299, 5-1/8 in Length, Crimp Connector, 90 deg C, Aluminum Alloy, Electro-Plated Tin, Brown, 0.72 in ID x 1.105 in OD
Color:
Brown
Conductor Size:
3/0 AWG to 350 kcmil
Conductor Type:
Aluminum/Copper
Connector Type:
Crimp
Country Of Origin:
Mexico
Die Code:
299
Dimensions:
0.72 in ID x 1.105 in OD
Finish:
Electro-Plated Tin
Length:
5-1/8 in
Material:
Aluminum Alloy
Temperature Rating:
90 deg C
Type:
Type ASN Dual Rated
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Electro tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX® prevents oxide from forming
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Dual-rated for aluminum and copper conductor
Product Details
ILSCO® ClearChoice® SureCrimp® Compression Sleeve, Type ASN Dual Rated, Aluminum/Copper Conductor, 3/0 AWG to 350 kcmil Conductor, Die Code: 299, 5-1/8 in Length, Crimp Connector, 90 deg C, Aluminum Alloy, Electro-Plated Tin, Brown, 0.72 in ID x 1.105 in OD
Attributes
Color: Brown
Conductor Size: 3/0 AWG to 350 kcmil
Conductor Type: Aluminum/Copper
Connector Type: Crimp
Country Of Origin: Mexico
Die Code: 299
Dimensions: 0.72 in ID x 1.105 in OD
Finish: Electro-Plated Tin
Length: 5-1/8 in
Material: Aluminum Alloy
Temperature Rating: 90 deg C
Type: Type ASN Dual Rated
Features
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Electro tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX® prevents oxide from forming
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Dual-rated for aluminum and copper conductor
