ILSCO ASN-500 ALUMINUM COMPRESSION SPLICE SLEEVE 500MCM
Product Details
Attributes
Features
Resources

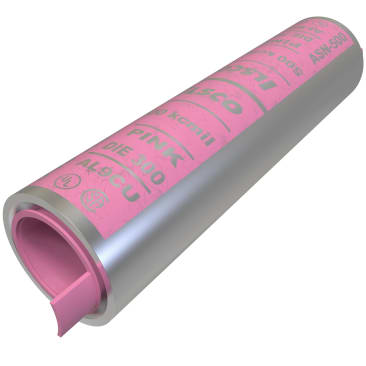

ILSCO® ClearChoice® Compression Sleeve, Type ASN Dual Rated, Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: 300, 5.13 in Length, Crimp Connector, 35 kV, 90 deg C, Aluminum, Electro-Plated Tin, Pink, 0.854 in ID x 1.315 in OD
ClearChoice® promotion continues to be tremendously effective in strengthening our strategic industry positioning - ILSCO® is the ClearChoice® in providing innovative, proprietary solutions that save time and money.
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics, electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion, end barrel and pre-filled with DE-OX® prevents oxide from forming
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- Roll marked barrel for easy identification and proper location of crimps
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion
- Prevents oxides from forming, promotes connector longevity and color coded end cap identifies the proper compression die
- Expanded wire size applicable when installed with specified dieless tools
- Permits inventories to be kept to a minimum
- 4/0 AWG to 500 kcmil expanded conductor size
- Dual-rated for aluminum and copper conductor
Product Details
ILSCO® ClearChoice® Compression Sleeve, Type ASN Dual Rated, Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: 300, 5.13 in Length, Crimp Connector, 35 kV, 90 deg C, Aluminum, Electro-Plated Tin, Pink, 0.854 in ID x 1.315 in OD
ClearChoice® promotion continues to be tremendously effective in strengthening our strategic industry positioning - ILSCO® is the ClearChoice® in providing innovative, proprietary solutions that save time and money.
Attributes
Features
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics, electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion, end barrel and pre-filled with DE-OX® prevents oxide from forming
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- Roll marked barrel for easy identification and proper location of crimps
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion
- Prevents oxides from forming, promotes connector longevity and color coded end cap identifies the proper compression die
- Expanded wire size applicable when installed with specified dieless tools
- Permits inventories to be kept to a minimum
- 4/0 AWG to 500 kcmil expanded conductor size
- Dual-rated for aluminum and copper conductor
