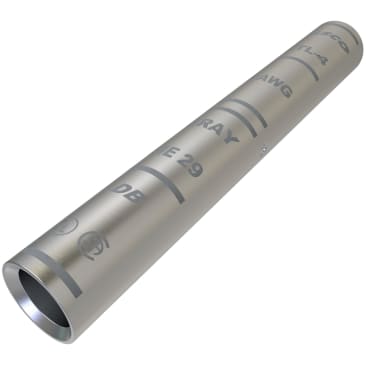

ILSCO CTL-4 COPPER COMPRESSION SLEEVE LONG BARREL #4
MFR Part #: CTL-4
SKU #: 1079591
Brand: ILSCO®
UPC: 78366912765
ILSCO® SureCrimp® CTL-4 CTL Long Barrel Compression Sleeve, 4 AWG Copper Conductor, Die Code: I-29, 2-3/8 in L, Copper
For use with splicer/reducer, grounding and bonding applications
CSA File No. LR29601 | NEBS Level 3 | UL 486A-BIUL 453G | UL 467 File No. E6207 | ECCN EAR99 | PROP65: Cancer -www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Compression Sleeve, Long Barrel, Series: CTL, Copper Conductor, 4 AWG Conductor, Die Code: I-29, 2-3/8 in Length, Crimp Connector, 600 VAC, 90 deg C, 1-1/4 in L Stripe, Copper, Electro-Plated Tin, Gray, 0.25 in ID x 0.343 in OD
Color:
Gray
Conductor Size:
4 AWG
Conductor Type:
Copper
Connector Type:
Crimp
Country Of Origin:
Mexico
Die Code:
I-29
Dimensions:
0.25 in ID x 0.343 in OD
Finish:
Electro-Plated Tin
Length:
2-3/8 in
Material:
Copper
Series:
CTL
Specifications:
1-1/4 in L Stripe
Temperature Rating:
90 deg C
Type:
Long Barrel
Voltage Rating:
600 VAC
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 4 AWG solid alternate conductor size
- 6 to 4 AWG expanded conductor
- Insures maximum cable insertion
Product Details
ILSCO® SureCrimp® Compression Sleeve, Long Barrel, Series: CTL, Copper Conductor, 4 AWG Conductor, Die Code: I-29, 2-3/8 in Length, Crimp Connector, 600 VAC, 90 deg C, 1-1/4 in L Stripe, Copper, Electro-Plated Tin, Gray, 0.25 in ID x 0.343 in OD
Attributes
Color: Gray
Conductor Size: 4 AWG
Conductor Type: Copper
Connector Type: Crimp
Country Of Origin: Mexico
Die Code: I-29
Dimensions: 0.25 in ID x 0.343 in OD
Finish: Electro-Plated Tin
Length: 2-3/8 in
Material: Copper
Series: CTL
Specifications: 1-1/4 in L Stripe
Temperature Rating: 90 deg C
Type: Long Barrel
Voltage Rating: 600 VAC
Features
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 4 AWG solid alternate conductor size
- 6 to 4 AWG expanded conductor
- Insures maximum cable insertion
