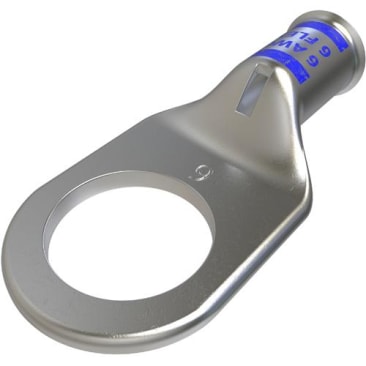

ILSCO CCL-6-12 COPPER COMPRESSION LUG 6AWG 1 H 1/2IN
MFR Part #: CCL-6-12
SKU #: 1231395
Brand: ILSCO®
UPC: 078366903118
ILSCO® ClearChoice® CCL-6-12 CCL 1-Hole Light Duty Lug Compression Connector With Sight Hole, 6 AWG Flex Copper Conductor, 1/2 in Stud, Tin Plated Copper
Terminating Connector Applications
UL 486A-486B File No. E6207 | CSA File No. LR29601 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 6 AWG Conductor, 600 VAC to 35 kV VAC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.059 in THK Tongue, 1.551 in Overall Length, 0.232 in ID x 0.299 in OD Barrel, 90 deg C, Tin Plated Copper, Blue, 0.752 in W
Barrel Size:
0.232 in ID x 0.299 in OD
Color:
Blue
Conductor Size:
6 AWG
Conductor Type:
Flex Copper
Country Of Origin:
India
Dimensions:
0.752 in W
Material:
Tin Plated Copper
Overall Length:
1.551 in
Series:
CCL
Stud Size:
1/2 in
Temperature Rating:
90 deg C
Tongue Size:
0.858 in L x 0.752 in W x 0.059 in THK
Tongue Type:
Solid Seamless
Type:
1-Hole Light Duty
Voltage Rating:
600 VAC to 35 kV VAC
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 6 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO® MT-25
Product Details
ILSCO® ClearChoice® Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 6 AWG Conductor, 600 VAC to 35 kV VAC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.059 in THK Tongue, 1.551 in Overall Length, 0.232 in ID x 0.299 in OD Barrel, 90 deg C, Tin Plated Copper, Blue, 0.752 in W
Attributes
Barrel Size: 0.232 in ID x 0.299 in OD
Color: Blue
Conductor Size: 6 AWG
Conductor Type: Flex Copper
Country Of Origin: India
Dimensions: 0.752 in W
Material: Tin Plated Copper
Overall Length: 1.551 in
Series: CCL
Stud Size: 1/2 in
Temperature Rating: 90 deg C
Tongue Size: 0.858 in L x 0.752 in W x 0.059 in THK
Tongue Type: Solid Seamless
Type: 1-Hole Light Duty
Voltage Rating: 600 VAC to 35 kV VAC
Features
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 6 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO® MT-25
