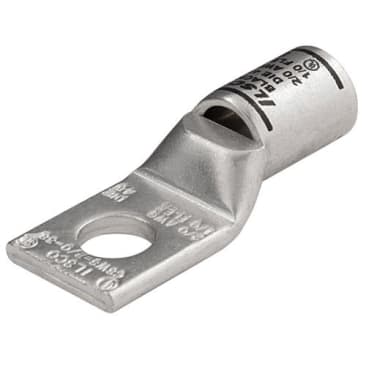

ILSCO CSWS-2/0-38 Image 1

ILSCO CSWS-2/0-38 COPPER COMPRESSION 2/0 KCMIL 13/32

MFR Part #: CSWS-2/0-38
SKU #: 1079577
Brand: ILSCO®
UPC: 78366963705
ILSCO® SureCrimp® CSWS-2/0-38 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 4 to 2/0 AWG Flex Copper Conductor, Die Code: ILD-45, 3/8 in Stud, Tin Plated Copper
Terminating Connector Applications
NEBS Level 3 | UL 453G | UL 486A-486B File No. E6207 | CSA File No. LR29601 | ECCN EAR99

ILSCO® SureCrimp® Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 4 to 2/0 AWG Conductor, Die Code: ILD-45, 600 VAC to 35 kV VAC, 3/8 in Stud, 0.875 in L x 0.811 in W x 0.125 in THK Tongue, 2.021 in Overall Length, Chamfered/Short/Standard Barrel, 0.437 in ID x 0.562 in OD x 0.75 in L Barrel, 0.812 in L Wire Strip, 90 deg C, 0.406 in Mounting Hole, Tin Plated Copper, Black, 0.811 in W

Product Details

ILSCO® SureCrimp® Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 4 to 2/0 AWG Conductor, Die Code: ILD-45, 600 VAC to 35 kV VAC, 3/8 in Stud, 0.875 in L x 0.811 in W x 0.125 in THK Tongue, 2.021 in Overall Length, Chamfered/Short/Standard Barrel, 0.437 in ID x 0.562 in OD x 0.75 in L Barrel, 0.812 in L Wire Strip, 90 deg C, 0.406 in Mounting Hole, Tin Plated Copper, Black, 0.811 in W

Attributes

Barrel Size: 0.437 in ID x 0.562 in OD x 0.75 in L
Barrel Type: Chamfered/Short/Standard
Color: Black
Conductor Size: 4 to 2/0 AWG
Conductor Type: Flex Copper
Country Of Origin: Mexico
Die Code: ILD-45
Dimensions: 0.811 in W
Material: Tin Plated Copper
Mounting Hole Size: .406 in
Overall Length: 2.021 in
Series: CSWS
Specifications: 0.812 in L Wire Strip
Stud Size: 3/8 in
Temperature Rating: 90 deg C
Tongue Size: 0.875 in L x 0.811 in W x 0.125 in THK
Type: 1-Hole
Voltage Rating: 600 VAC to 35 kV VAC

Features

  • Manufactured from high strength seamless copper tubing, electro-tin plated
  • Color coded
  • Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
  • Offers maximum conductivity and excellent crimping characteristics
  • Provides low contact resistance
  • For easy conductor insertion
  • Identifies the proper compression die
  • Application versatility
  • Reduces inventory requirements
  • For grounding and bonding applications
  • Chamfered barrel for visual inspection of proper cable insertion
  • 1/0 AWG flexible alternate conductor size
  • Electro-tin plated
  • Standard barrel length with chamfered entry
