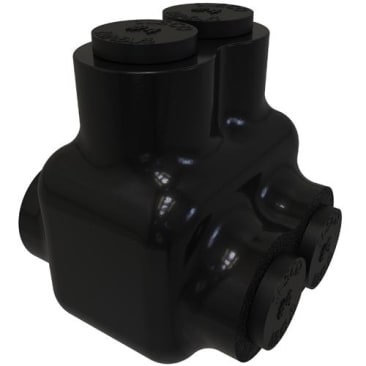

ILSCO PBTD-2-4 NIMBUS DOUBLE ENTRY INSULATED CONNECTOR
MFR Part #: PBTD-2-4
SKU #: 1236840
Brand: ILSCO®
UPC: 78366907710
ILSCO® NIMBUS® PBTD-2-4 Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® NIMBUS® Multi-Tap Connector, Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 14 to 4 AWG Wire, 1/8 in Hex, 95 A, -45 to 90 deg C, Aluminum, 1.24 in L x 1.25 in W x 1.42 in H
Conductor Type:
Aluminum/Copper
Country Of Origin:
Mexico
Dimensions:
1.24 in L x 1.25 in W x 1.42 in H
Material:
Aluminum
Specifications:
14 to 4 AWG Wire, 1/8 in Hex, 95 A
Temperature Rating:
-45 to 90 deg C
Type:
Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated
Voltage Rating:
600 VAC
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Patented screw design
- Incoming and outgoing conductors must be staggered
Product Details
ILSCO® NIMBUS® Multi-Tap Connector, Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 14 to 4 AWG Wire, 1/8 in Hex, 95 A, -45 to 90 deg C, Aluminum, 1.24 in L x 1.25 in W x 1.42 in H
Attributes
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 1.24 in L x 1.25 in W x 1.42 in H
Material: Aluminum
Specifications: 14 to 4 AWG Wire, 1/8 in Hex, 95 A
Temperature Rating: -45 to 90 deg C
Type: Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated
Voltage Rating: 600 VAC
Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Patented screw design
- Incoming and outgoing conductors must be staggered
